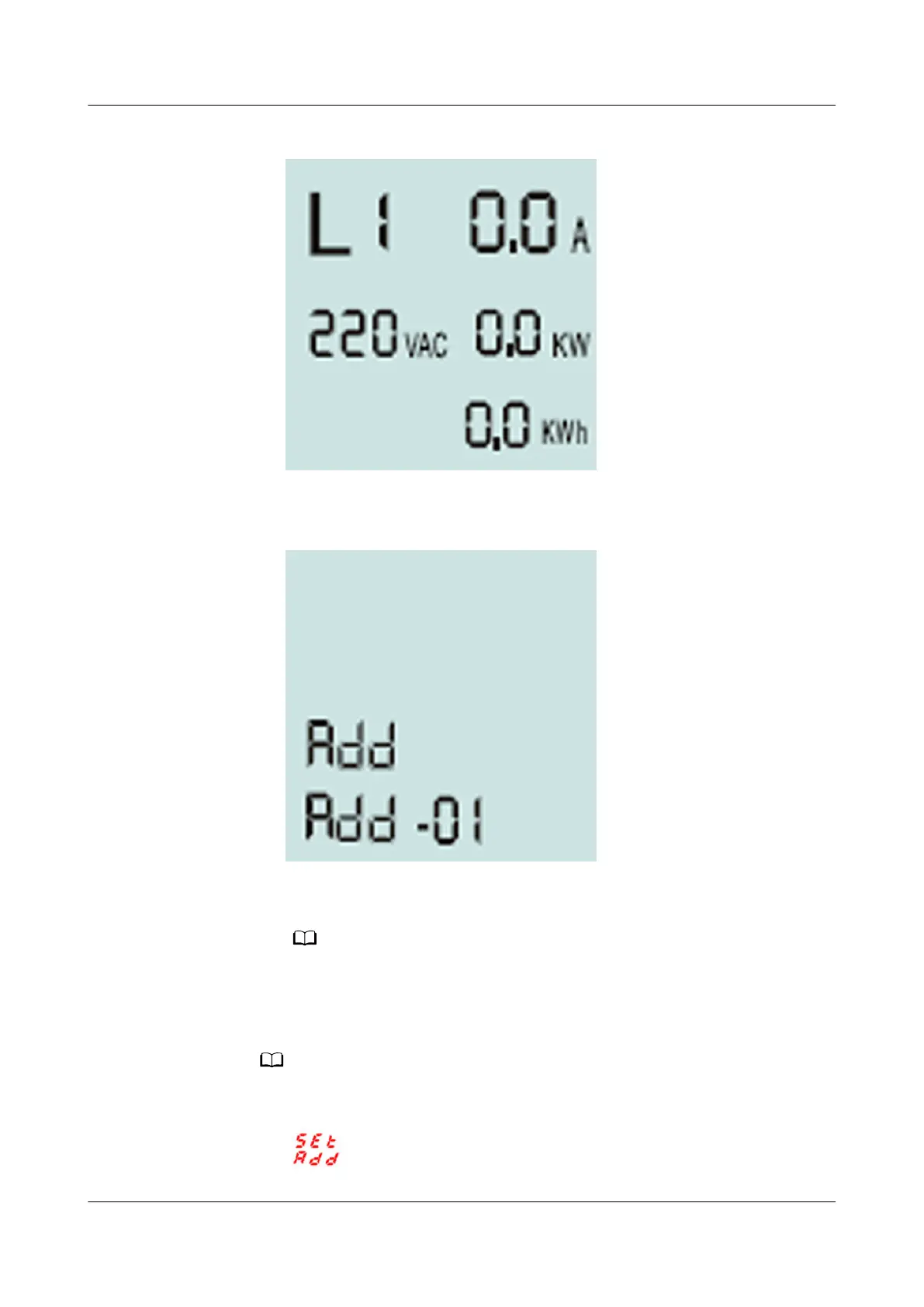

Figure 5-6 PDU2000-M (C) initialization screen
– Press MENU to enter the device communications address screen.
Figure 5-7 PDU2000-M (C) communications settings
– Set a unique address by pressing DOWN and UP.
– Press MENU to conrm the settings.
The parameter settings take eect only if you press MENU and then the
PDU2000-M (C) buzzes and restarts. If you do not press MENU, the PDU2000-M
(C) buzzes and restarts automatically after 30s and the settings are not saved.
● Set the PDU2000-M (H) monitoring parameters.
The display of a single-phase module is used as an example.
– After the PDU2000-M (H) is powered on, press MENU. The LCM displays
.
