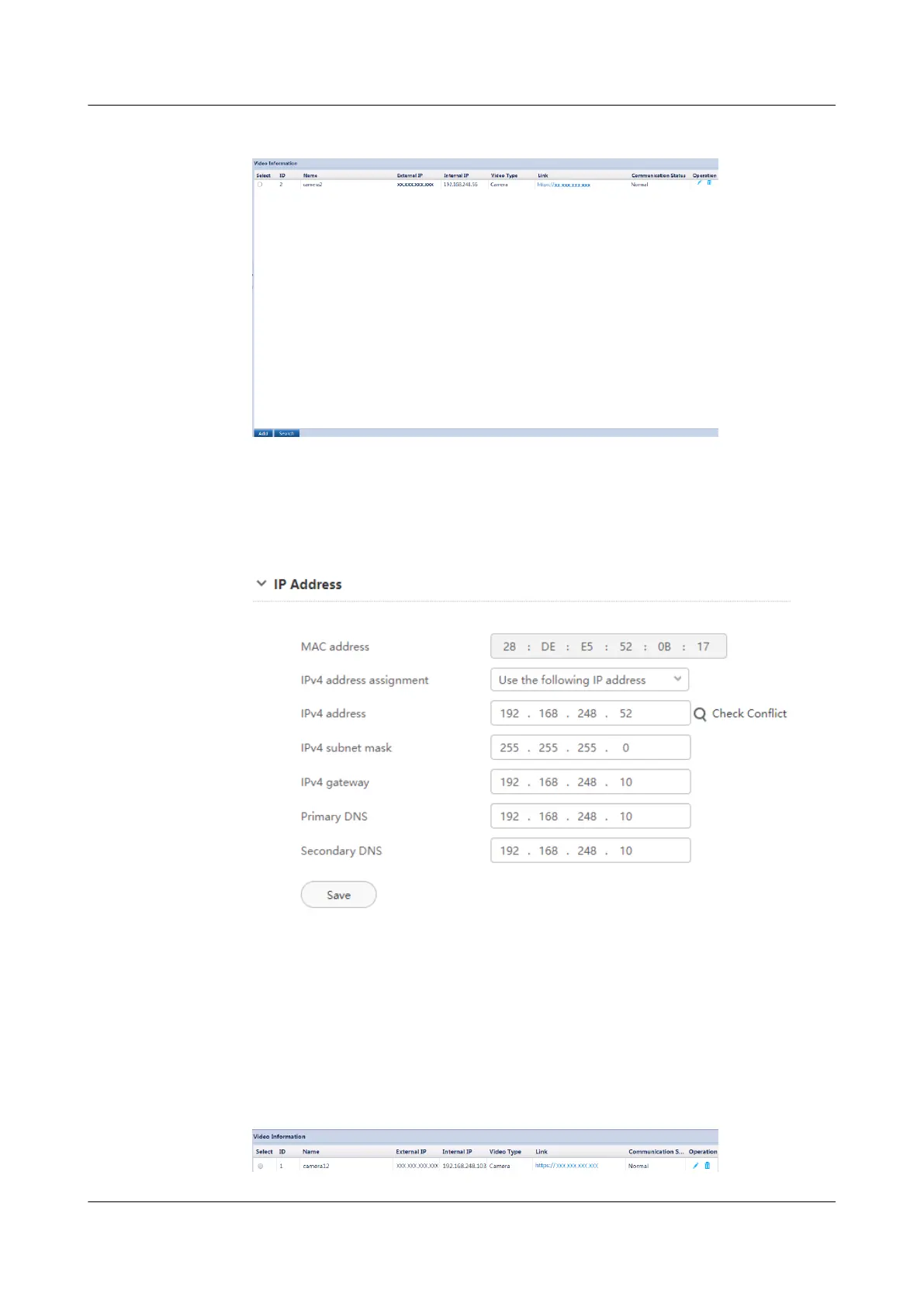

Figure 5-60 Clicking the camera access link
5. Choose Settings > Network > TCP/IP, set Way to obtain IPv4 to Use the
following IP address and set an IPv4 address to the planned IP address for
the camera. The IPv4 address should be in the range of 192.168.248.50 to
192.168.248.99.
Figure 5-61 Setting the IP address
Step 3 On the ECC800-Pro WebUI, click Add in the lower left corner of Video
Information. In the New Video Information dialog box that is displayed, enter
camera and VCN or IVS1800 information.
Name: Enter the camera and VCN or IVS1800 names (for example, Camera1).
External IP: Enter the external IP address based on the customer's plan.
Internal IP: Enter the internal IP addresses of the camera and VCN or
IVS1800, for example, 192.168.248.56.
Figure 5-62 Allocated internal IP address of the camera
FusionModule2000-S Smart Modular Data Center
User Manual 5 Power-On Commissioning
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 226
