Context
The water detector is installed in the cabinet and bound to the rack rail using
cable ties. The binding position is 5 U away from the cabinet bottom.
A water sensor consists of a water detection cable, water detector, and conversion
cable. The water detection cable is laid out on the oor, connecting to the water
detector placed near the collector by the conversion cable.

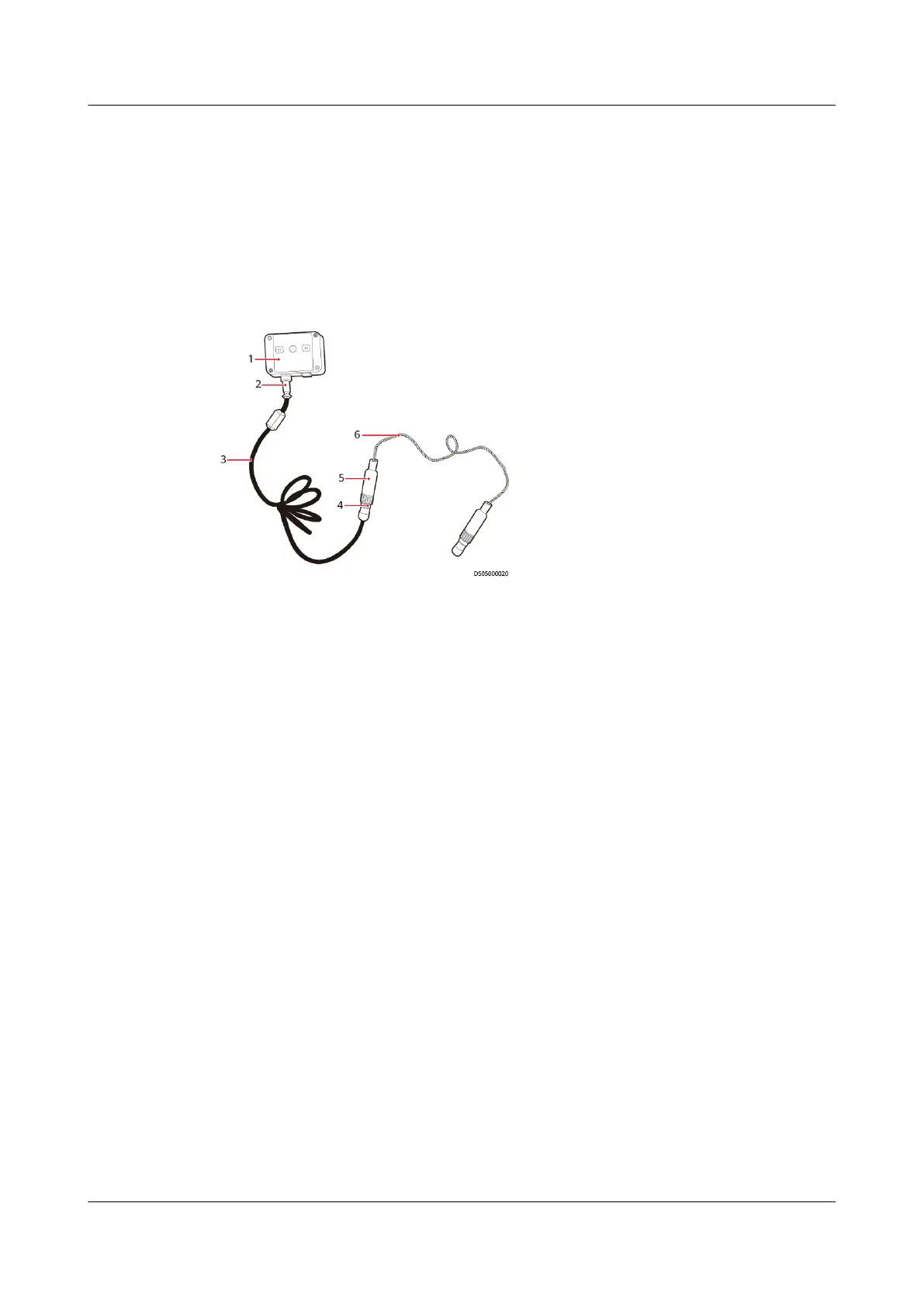

Figure 6-26 Water sensor components
(1) Water detector (2) Conversion cable end A,
connected to the water detector
(3) Conversion cable
(4) Conversion cable end B,
connected to the water
detection cable
(5) Water detection cable end A,
connected to the conversion cable
(6) Water detection cable
Procedure
Step 1 Replace the water detector.
1. Remove the conversion cable at the conversion port for the water detector
and conversion cable.
2. Remove the cover from the water detector.
FusionModule500 Smart Mini Data Center
User Manual 6 O&M
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 286
