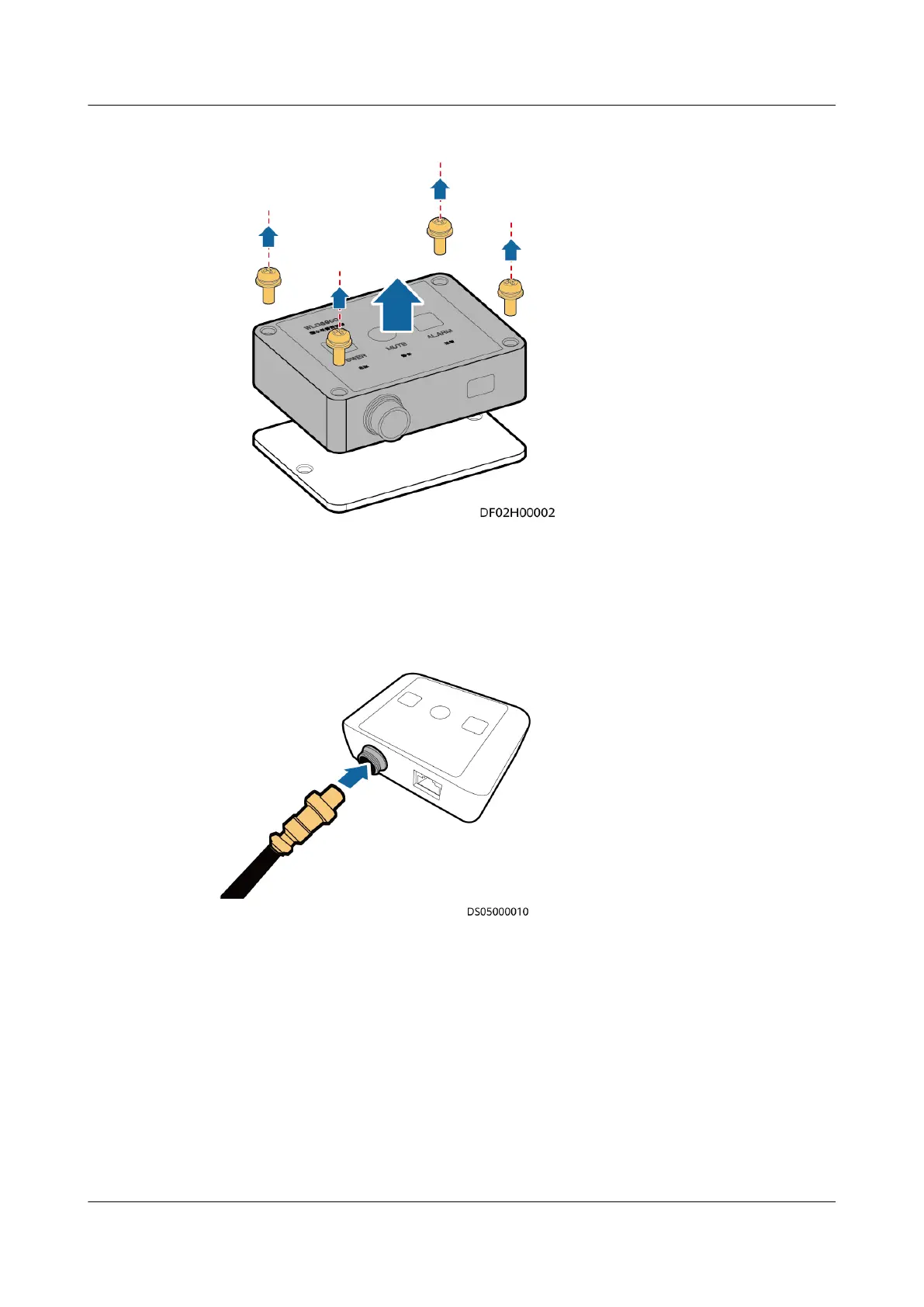

Figure 6-27 Removing the cover from the water detector
3. Remove the bottom plate of the water detector from the binding position in
the cabinet.
4. Install a new water detector in the cabinet by referring to the preceding steps.
5. Connect the new water detector to the conversion cable.
Figure 6-28 Connecting a conversion cable to a water detector
Step 2 Replace a water detection cable.
1. Remove the faulty water detection cable from the port.
2. Install a new water detection cable.
FusionModule500 Smart Mini Data Center
User Manual 6 O&M
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 287
