(5) COM1/AIDI_4 (6) COM3/12V (7) WAN1 (8) LAN1/POE
(9) LAN2/POE (10) WAN2 (11) COM4/CAN (12) COM2/AIDI_5
(13) AIDI_3 (14) DO/12V (15) RF_Z (802.15.4) (16) WLAN (reserved)
(17) 4G (18) SW button
The WLAN port is reserved and cannot be connected to a WLAN antenna for WLAN
communication.

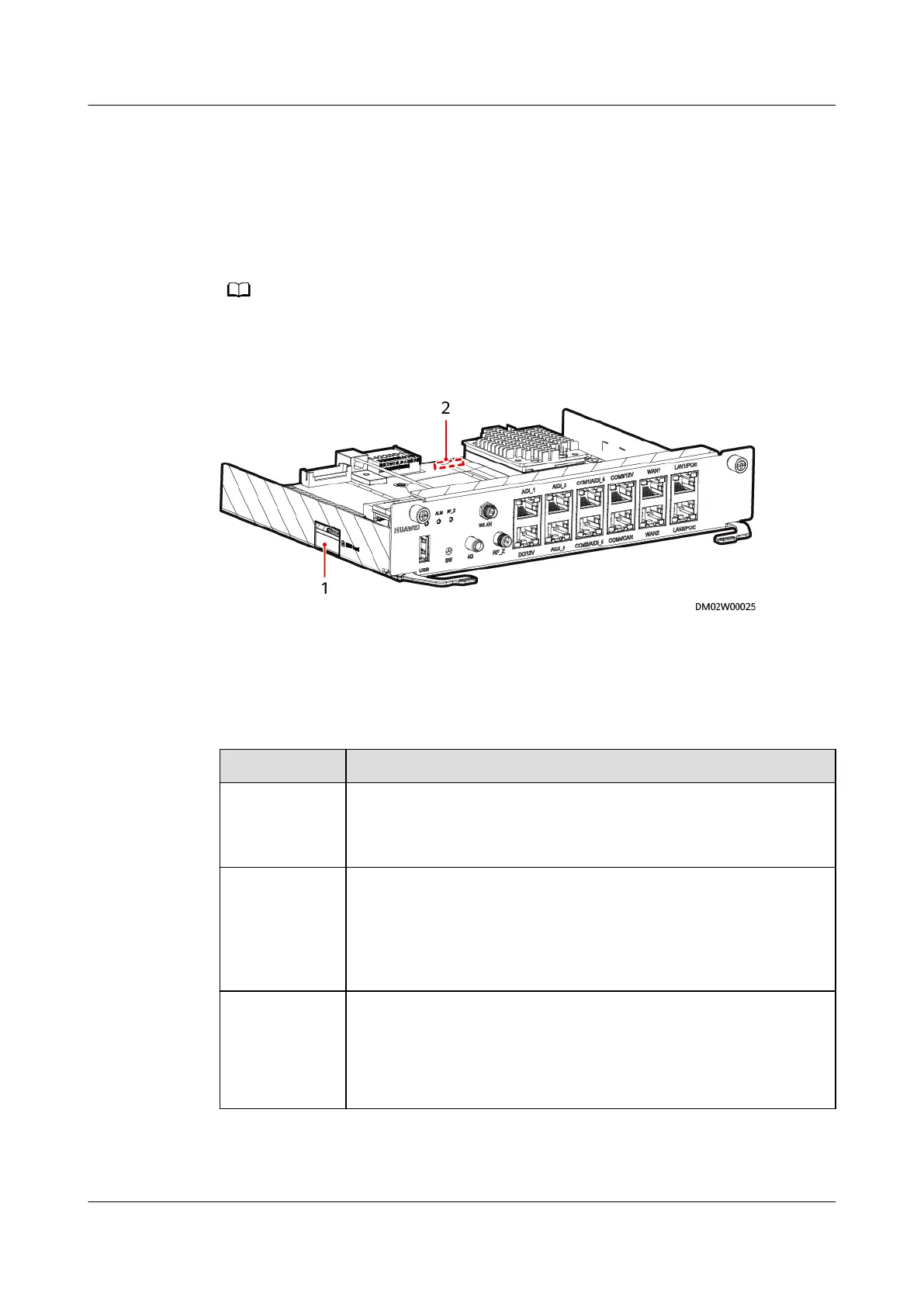

Figure 3-9 ECC800-Pro main control module (side view)
(1) SIM card slot
(2) Micro SD card slot (reserved)
Specications
Table 3-12 Technical specications of the ECC800-Pro main control module
Item
Specications
Power input ● Supports one AC input.
● Rated voltage: 200–240 V AC
● Rated frequency: 50/60 Hz
Power output ● Output voltage: 42–58 V DC (rated voltage: 53.5 V DC)
● Output power of two power module supplies: 2000 W (200–
240 V AC); 940 W (linear derating at 85–175 V AC)
● Output power of a single power module supply: 1000 W
(200–240 V AC); 470 W (linear derating at 85–175 V AC)
WAN port ● Supports two WAN ports. WAN1 is used to connect to the
management system, and WAN2 is used for maintenance.
The ports support autonegotiation of 10/100/1000 Mbit/s
communication rates.
● Connect shielded network cables to the WAN ports.
FusionModule500 Smart Mini Data Center
User Manual 3 System Architecture
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 32
