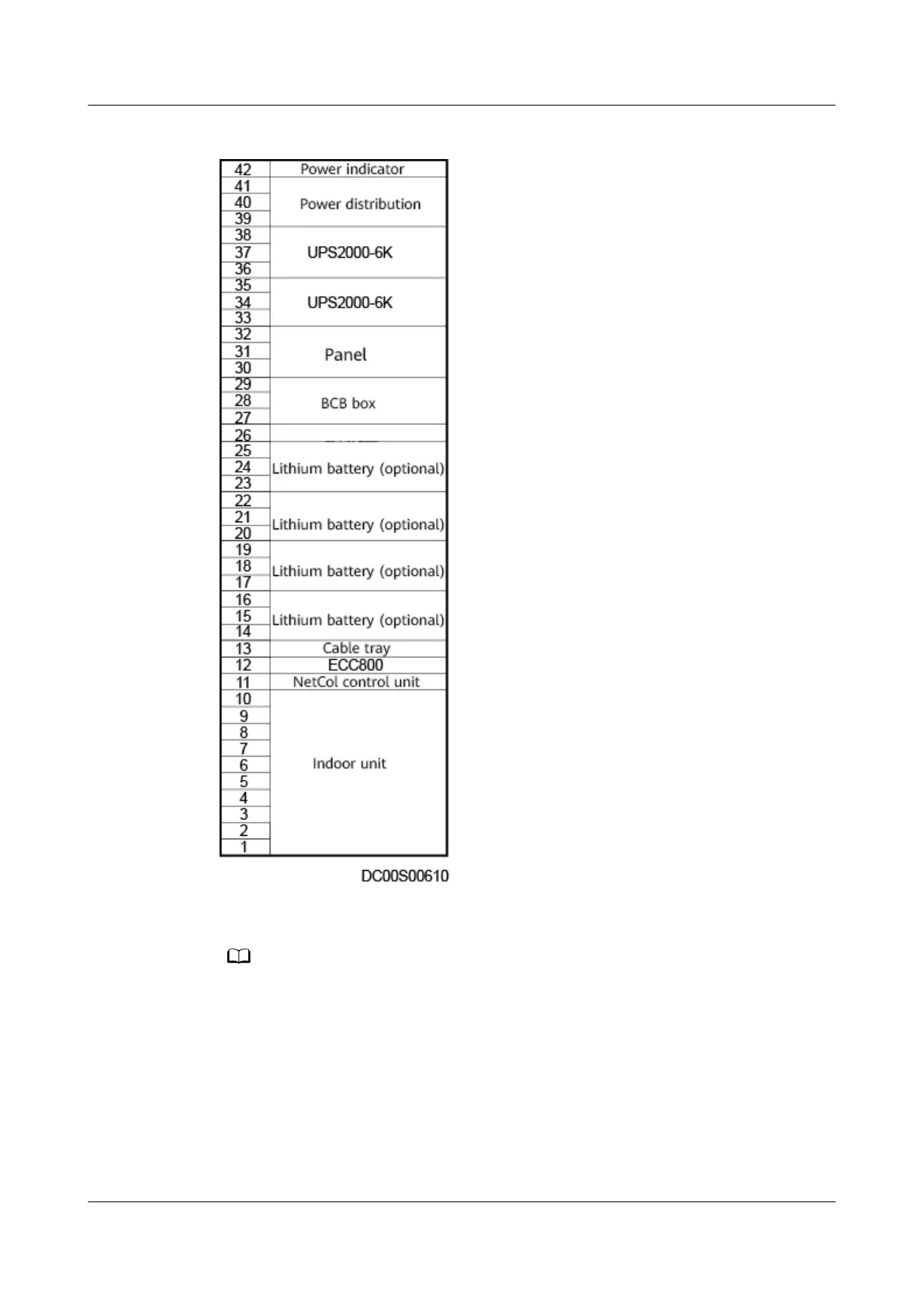

Figure 4-2 Component layout in the Converged Cabinet
You are advised to number cabinets and PDU2000s based on Figure 4-3.
● The following describes how to number cabinets and PDU2000s in a scenario with ve
cabinets.
● (1), (2), and (3) refer to the cabinet number, and A and B refer to the PDU2000 number.
● You are advised to number cabinets from left to right.
● The Converged Cabinet does not have to be numbered.
● PDU2000s are deployed at the cabinet rear door and are recommended to be numbered
from exterior to interior.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 98
