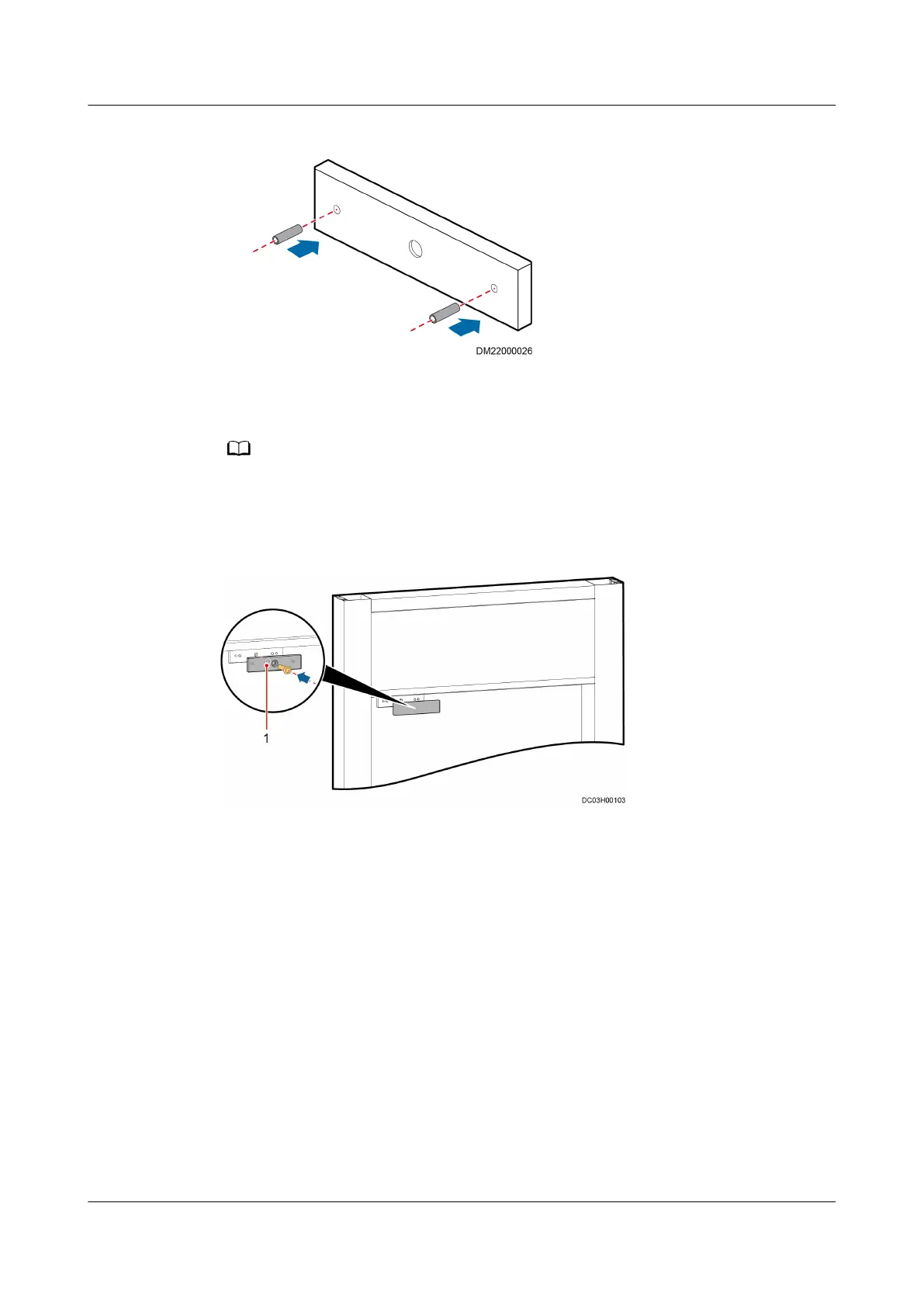

Figure 4-167 Installing positioning pins of a magnet
2. Insert the assembled magnet into the positioning holes in the door, and
secure the magnet to the door using the screws and rubber pad delivered
with the electronic lock, as shown in Figure 4-168.
When securing the magnet to the door panel, do not over-tighten the screws so that the
rubber pad is elastic. The rubber pad will adjust the magnet to a correct position because of
its elasticity.
Figure 4-168 Installing a magnet
(1) Rubber pad
Step 8 (Optional) Adjust the magnet.
1. If the magnet cannot attract the door properly after power-on, place a
magnetized metal part near the magnet to check whether the magnet
provides a proper magnetic force.
2. If the magnetic lock and the magnet do not work properly, check and
troubleshoot the circuit.
----End
4.2.9.14 (Optional) Installing an In-Room Fingerprint and Card Reader with
a Keypad
Context
● The BOM number of a
ngerprint and card reader with a keypad is 02070174.
