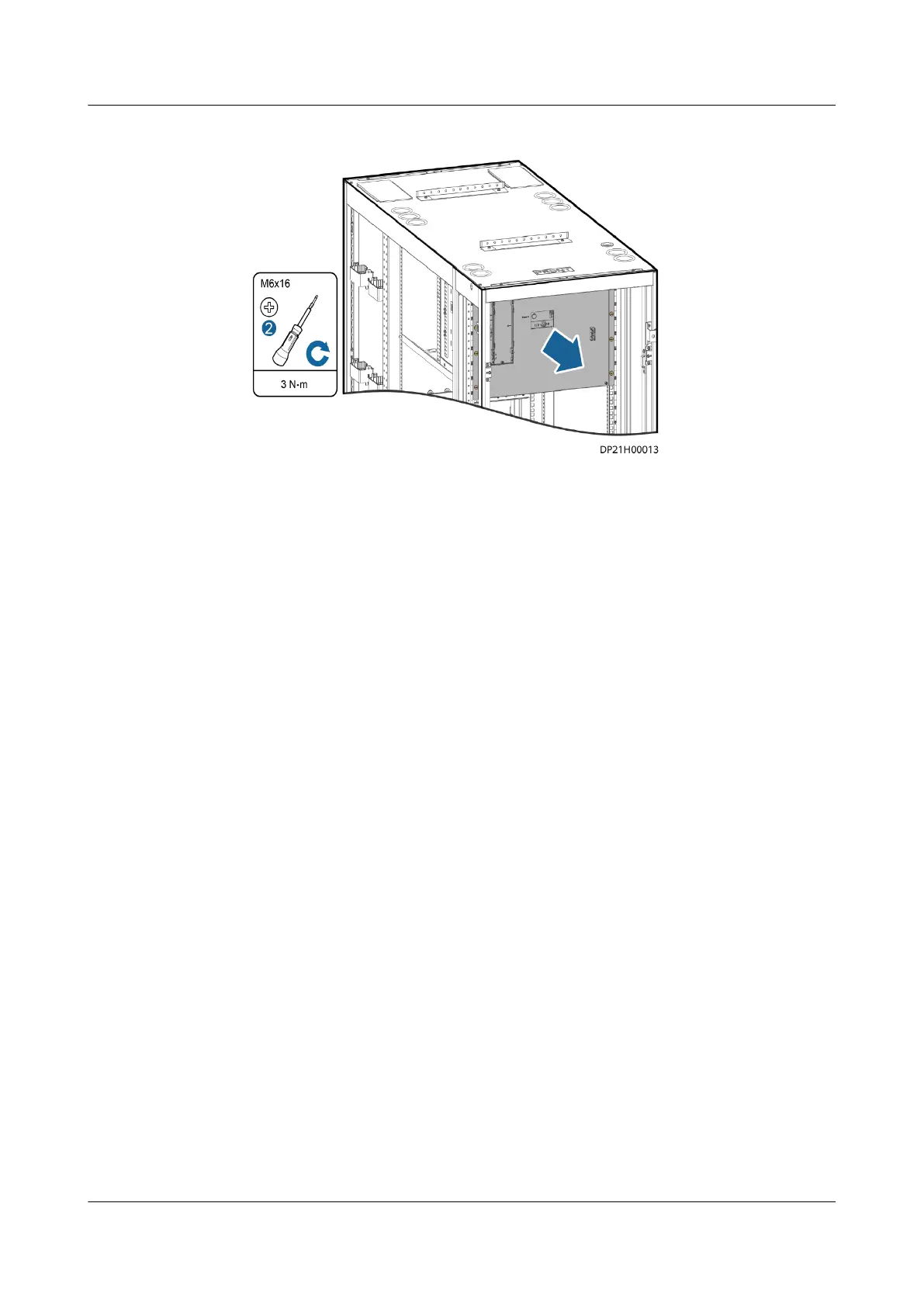

Figure 6-10 Replacing an ATS subrack
4. Install the spare ATS subrack.
5. Connect the ATS input and output power cables and monitoring cables.
6.4.3 Replacing Cooling System Components
6.4.3.1 Replacing Indoor Unit Components
Figure 6-11 and Figure 6-12 show the components of an indoor unit.
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 412
