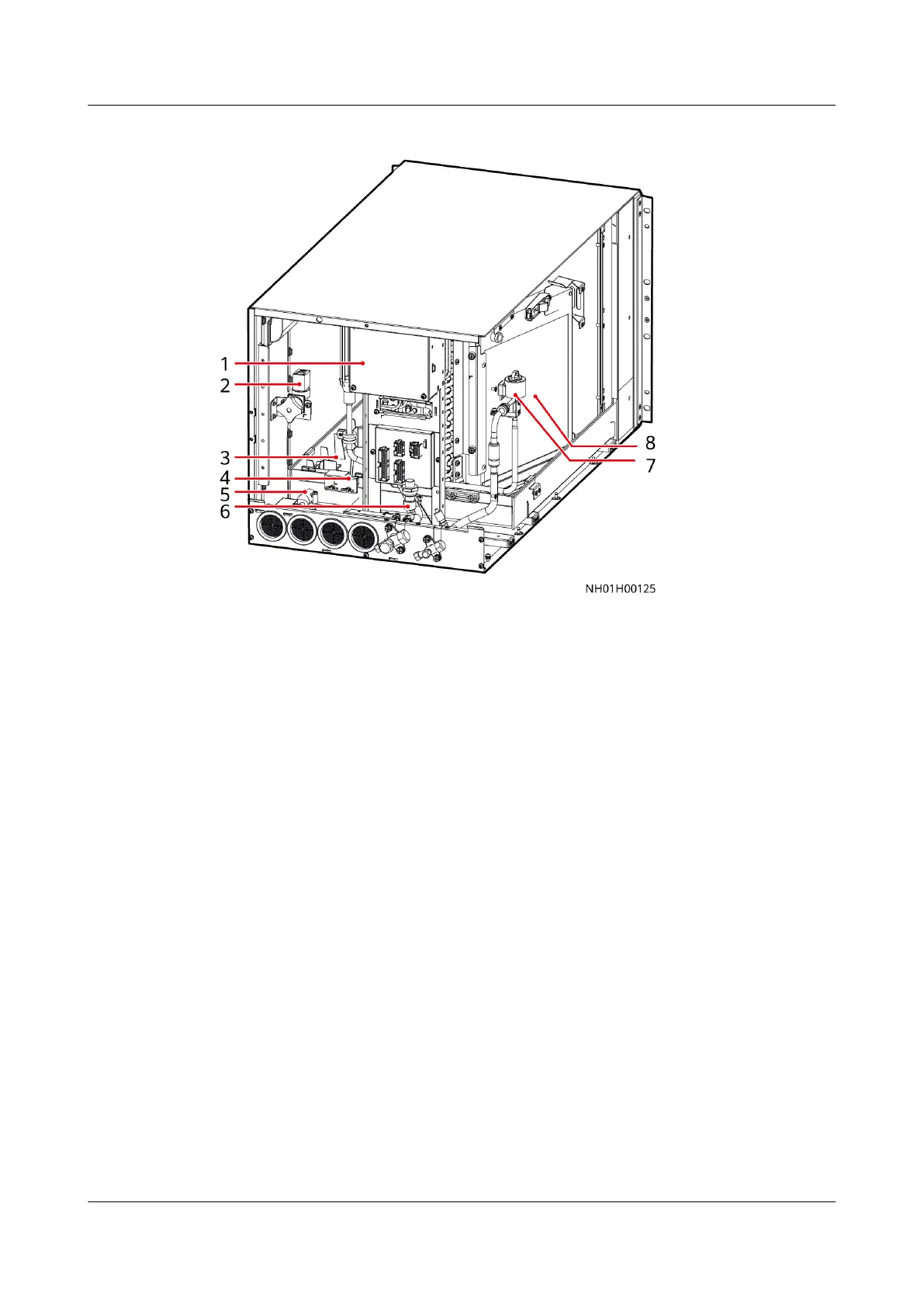

Figure 6-11 Indoor unit components (rear)
(1) Electric control box (2) Water inlet solenoid valve (3) High liquid level detector
(4) Low liquid level detector (5) Condensate pump (6) Low pressure sensor
(7) Electronic expansion valve (8) Wet lm humidier
(optional)
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 413
