Figure 4-151 Securing a water detection cable
If multiple water detection cables are connected in series, connect the male connector of
one cable to the female connector of another.
----End
4.2.9.10 Installing an Electrode Water Sensor
If the water sensor is required, perform the following steps to install it.
Procedure
Step 1 Place the water sensor on the
oor under the Converged Cabinet
Step 2 Route the water sensor cable through the cable hole in the lower cover plate of
the Converged Cabinet for the hot aisle.
Step 3 Connect it to the water sensor cable connected to the ECC.

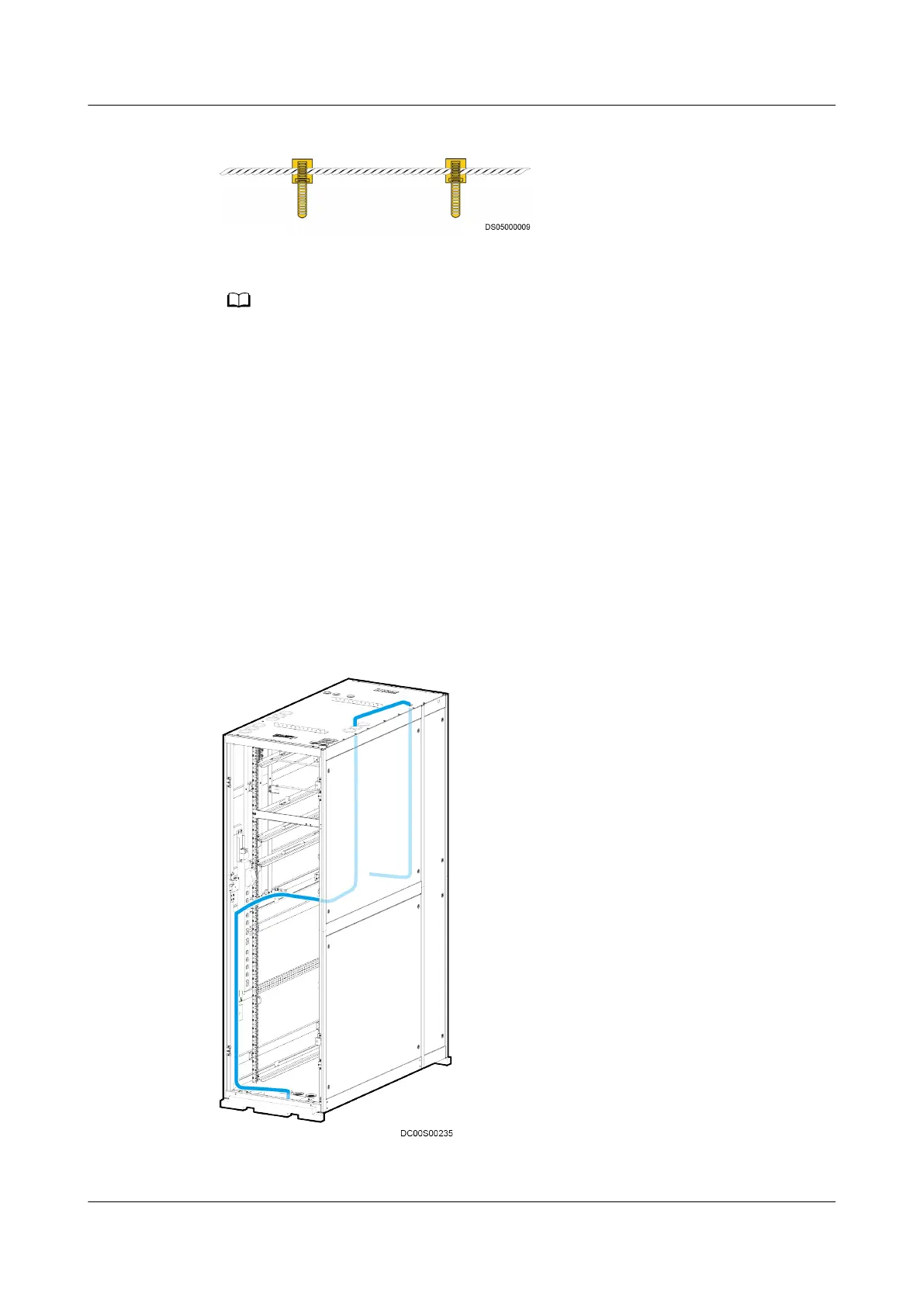

Figure 4-152 Signal Cable Routing
----End
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 199
