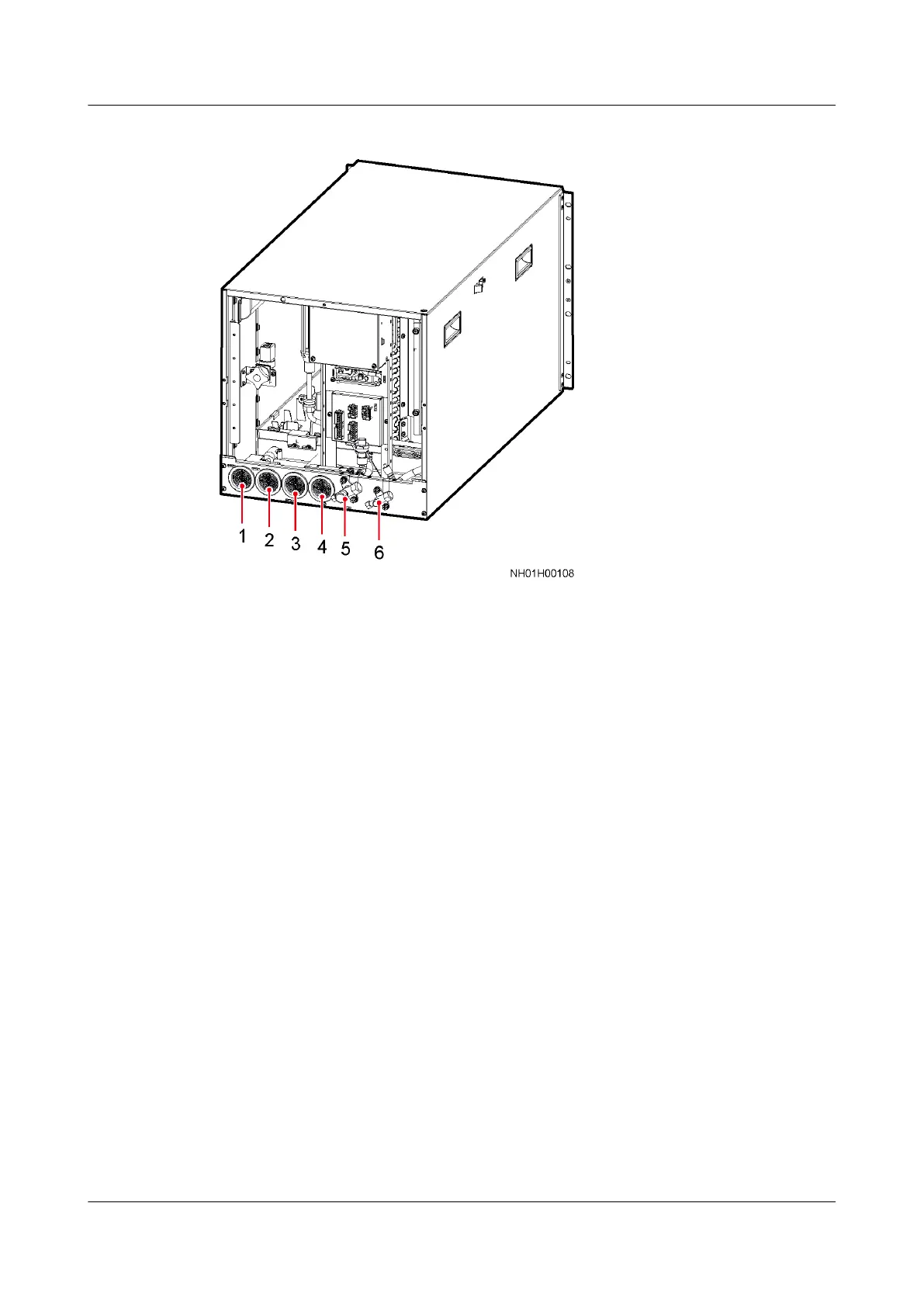

Figure 4-60 Holes in the smart cooling product
(1) Water inlet hole (2) Strong-current cable hole (3) Water outlet hole
(4) Signal cable hole (5) Gas pipe stop valve (6) Liquid pipe stop valve
4.2.6.6.1 (Optional) Connecting the Humidier Water Inlet Pipe
Context
This section applies only to models with humidiers.
The smart cooling product water inlet pipe inside the cabinet can be routed from
the bottom or top. Determine the pipe routing mode based on site conditions.
Figure 4-61 shows how to connect a water inlet pipe.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 140
