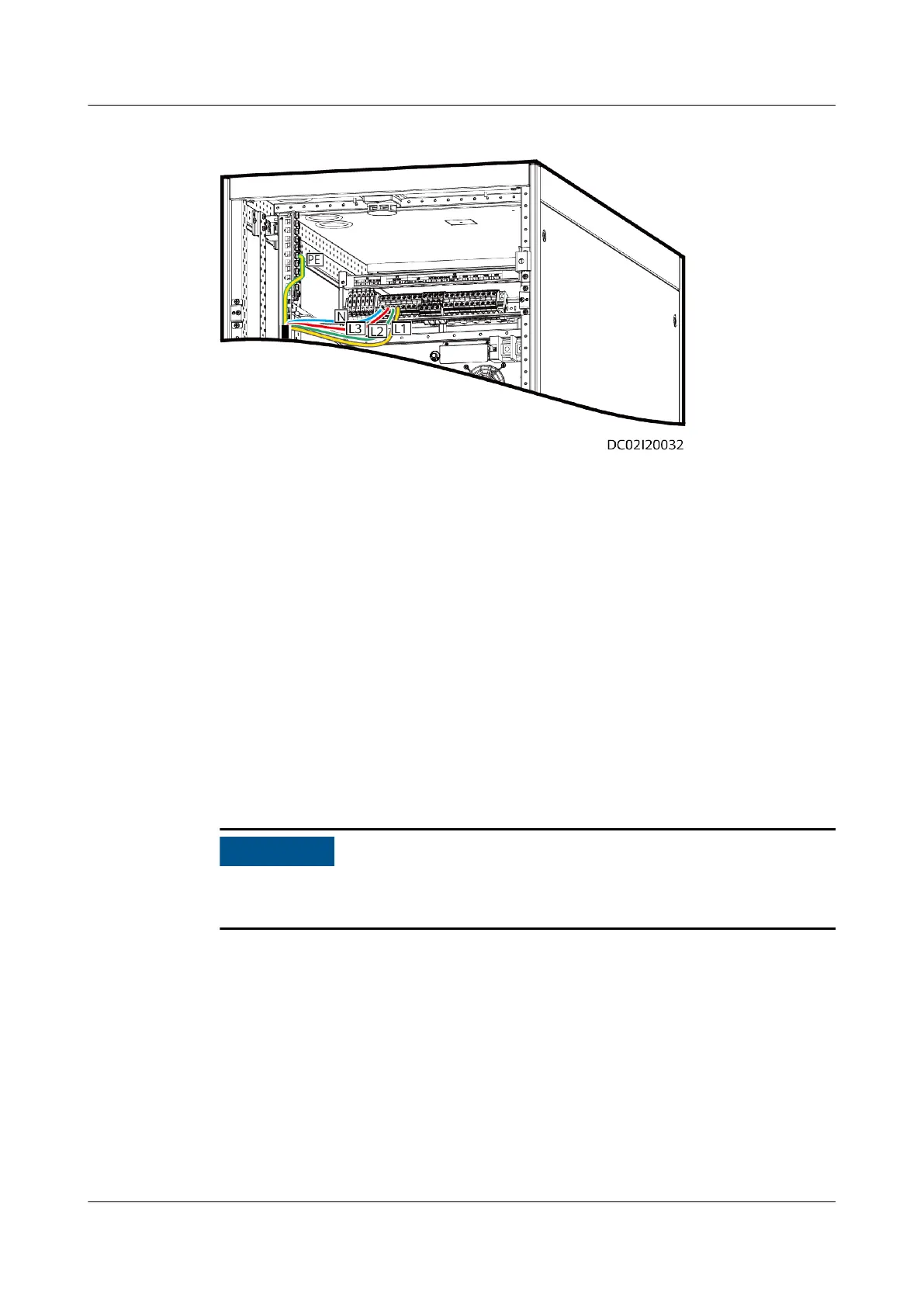

Figure 4-205 Example of bottom cable routing
4.3.5.3 Connecting PDU2000 Power Cables
Context
If the PDU2000 is not provided with industrial connectors, connect the PDU2000
cables and lay out the cables on the cabinet top.
Preparations
Tools: Phillips screwdriver,
at-head screwdriver, diagonal pliers, protective gloves
Material: cable tie
Procedure
Step 1 Connect the PDU2000 cables.
Connect cables to the PDU2000 based on the type of the PDU2000 and the silk
screen on the wiring port. The following cable connection is for reference only.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 232
