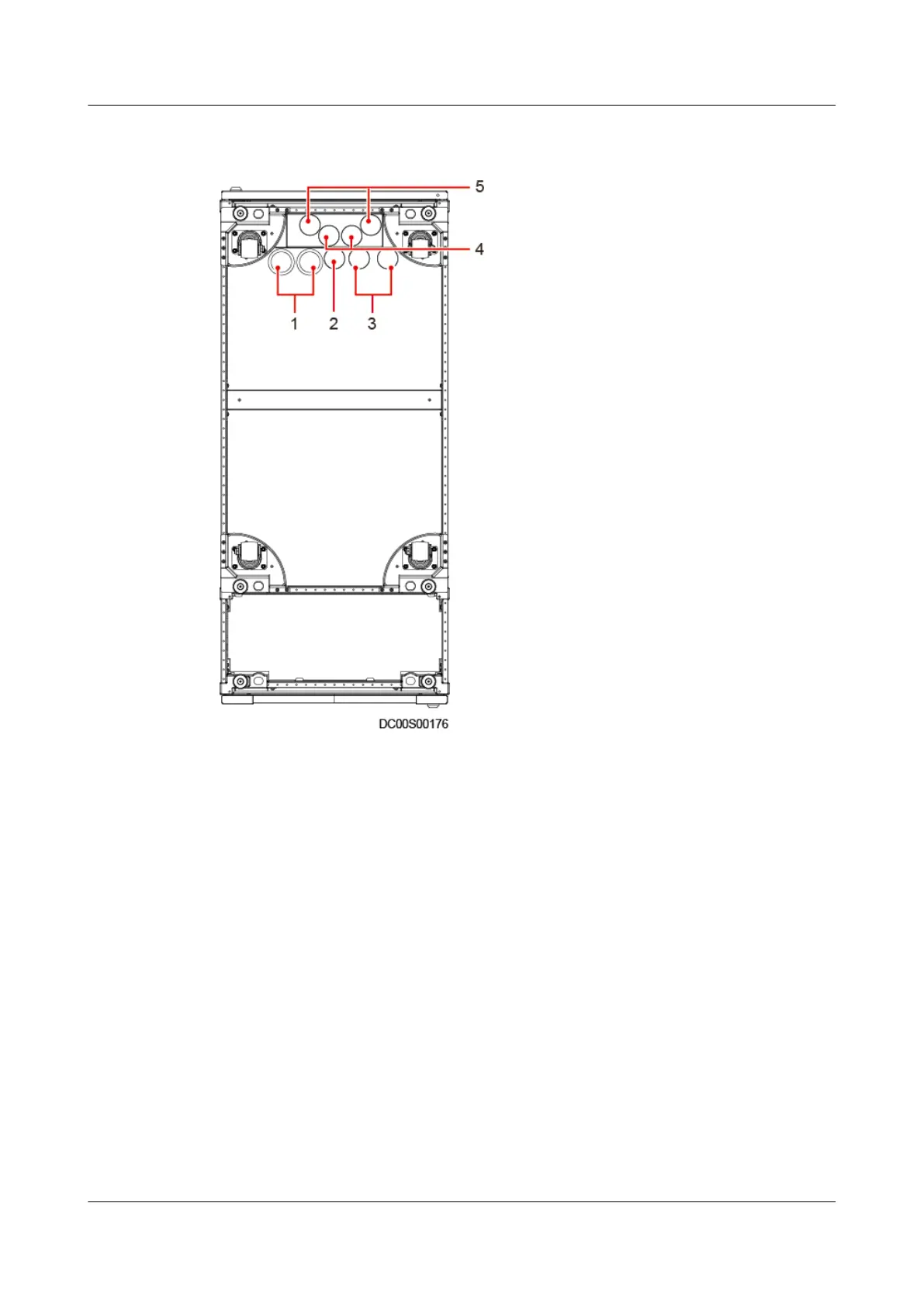

Figure 4-204 Cable holes for routing cables through the bottom of the Converged
Cabinet
(1) Holes for the smart cooling product water
inlet pipe and drainpipe
(2) Hole for the signal cable and water sensor
cable
(3) Holes for the input power cable and
battery cabinet power cable
(4) Holes for the smart cooling product
refrigerant liquid pipe
(5) Holes for the smart cooling product
refrigerant gas pipe
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
