Figure 4-86 Installing an ATS Subrack
The ATS subrack needs to be installed at the 33–40 U position in the IT cabinet to the
right of the converged cabinet.
4.2.8 (Optional) Installing Cable Troughs
If cable troughs are congured, perform the following steps to install them.
4.2.8.1 Removing a Binding Plate
Prerequisites
A cable trough is determined to be installed.
Context

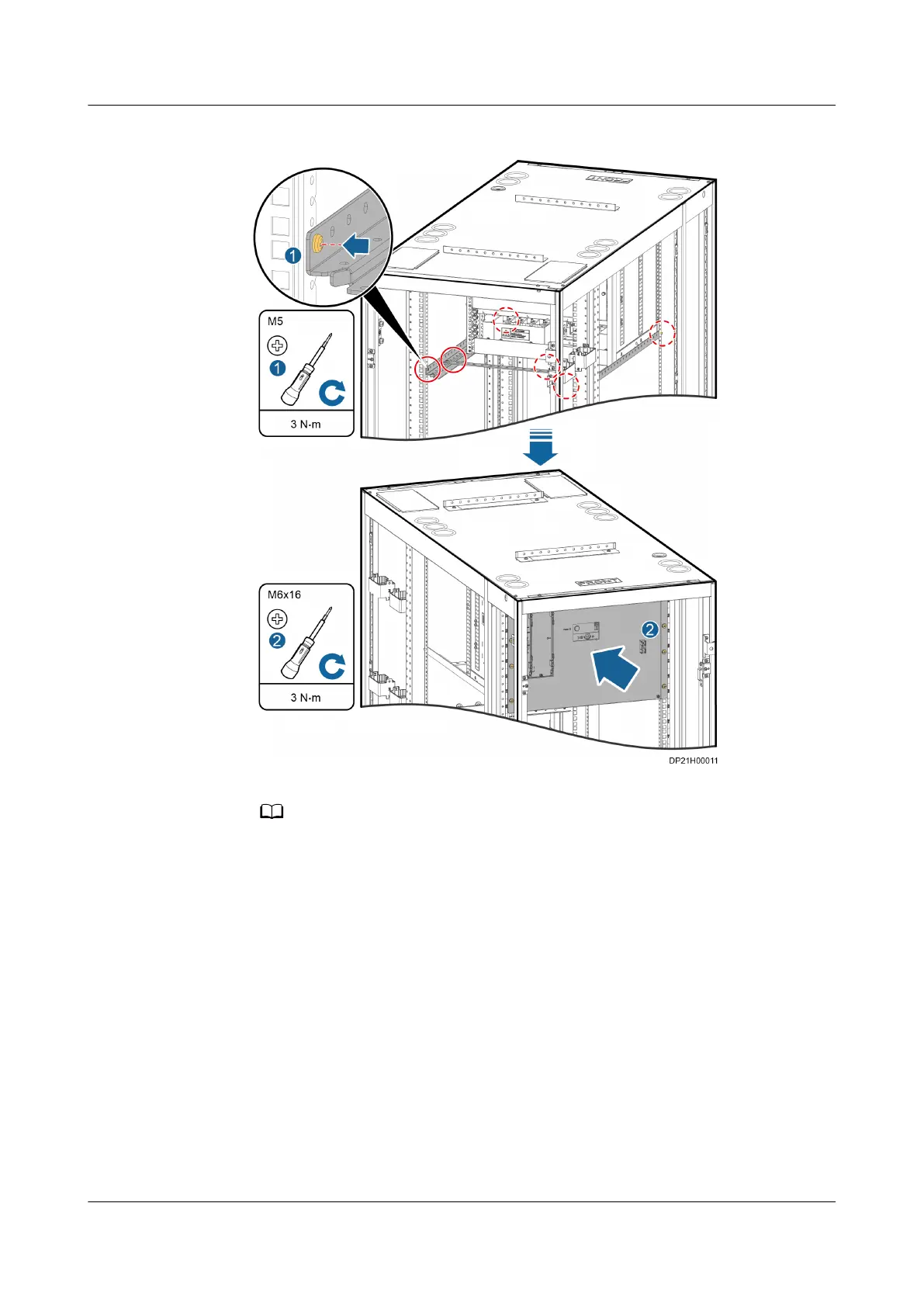

Install a binding plate at the top of the cabinet.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 163
