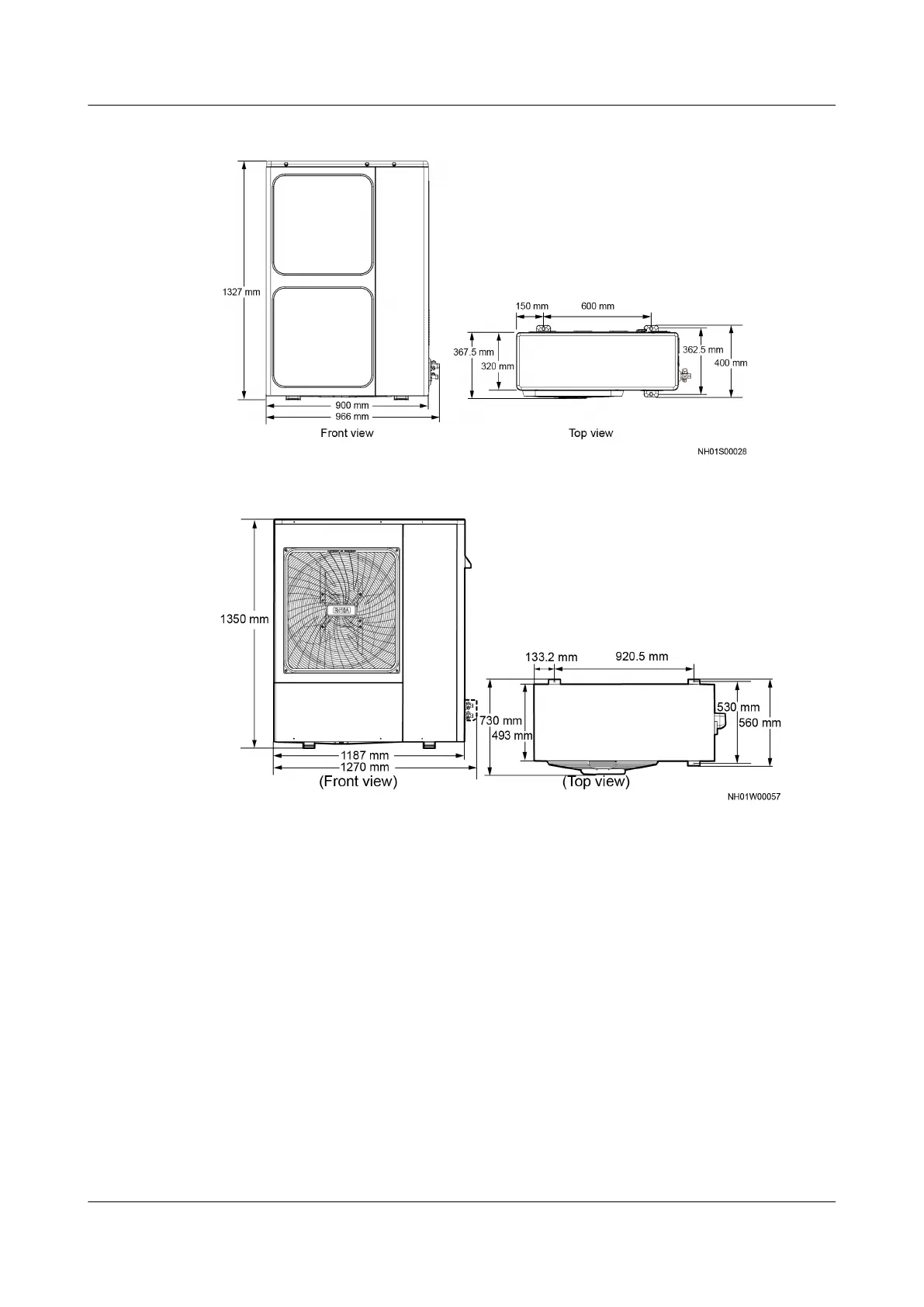

Figure 4-5 Installation dimensions of NetCol500-A020
Figure 4-6 Installation dimensions of NetCol500-A021
Unit
1 MPa ≈ 10 bar
1 MPa ≈ 145 psi
1 MPa ≈ 10.2 kgf/cm
2
4.2 Hardware Installation
The angle of door opening by the gas spring is 110°. Ensure that the door opening
angle is less than 110°.
4.2.1 Transportation and Unpacking
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 100
