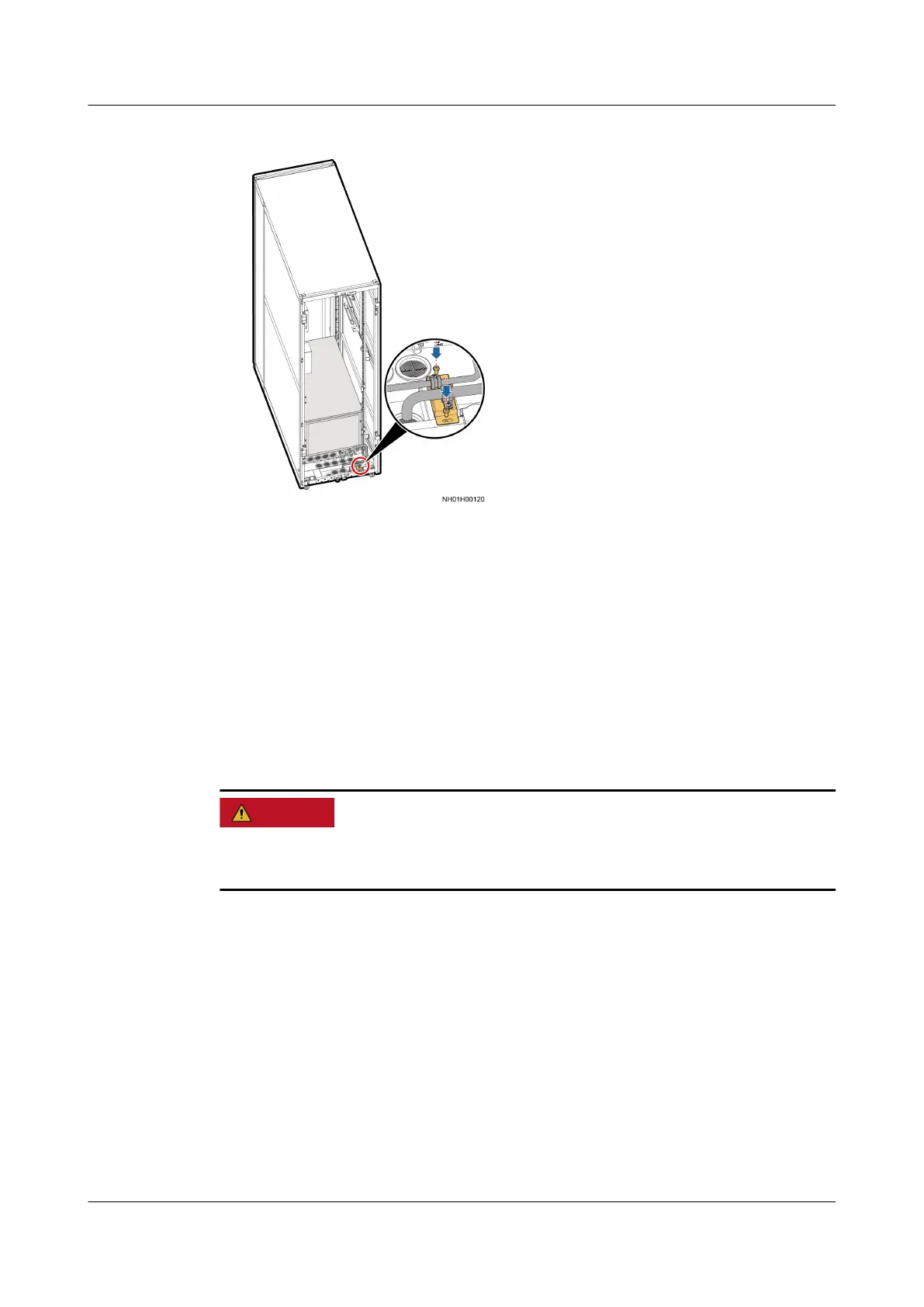

Figure 4-55 Bottom pipe routing inside the IT cabinet
4.2.6.5.2 Laying Out Pipes Outside a Cabinet
Prerequisites
Check that the nuts on the needle valve and rear cover of the smart cooling
product are tightened.
Context
Tools: adjustable wrench (250 mm x 30 mm), hex key (5 mm), torque wrench
(17#/19#/27#/30#/36#)
Before welding, exhaust all nitrogen from the refrigerant pipe to avoid explosion
and personal injury.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 135
