● Displays the operating status and duration of the components of the smart
cooling product in real time on the touchscreen (optional) of the Converged
Cabinet.
● Provides RS485 and FE ports that support the MAC-Modbus protocol.
● Uses FE ports for teamwork control networking using the MAC protocol,
oering a higher transmission rate.
3.4.3.3 PAD
The PAD allows the wireless access from the data center management system. You
can monitor the equipment in the data center and environmental parameters in
real time over the app. The recommended model is T5-10.

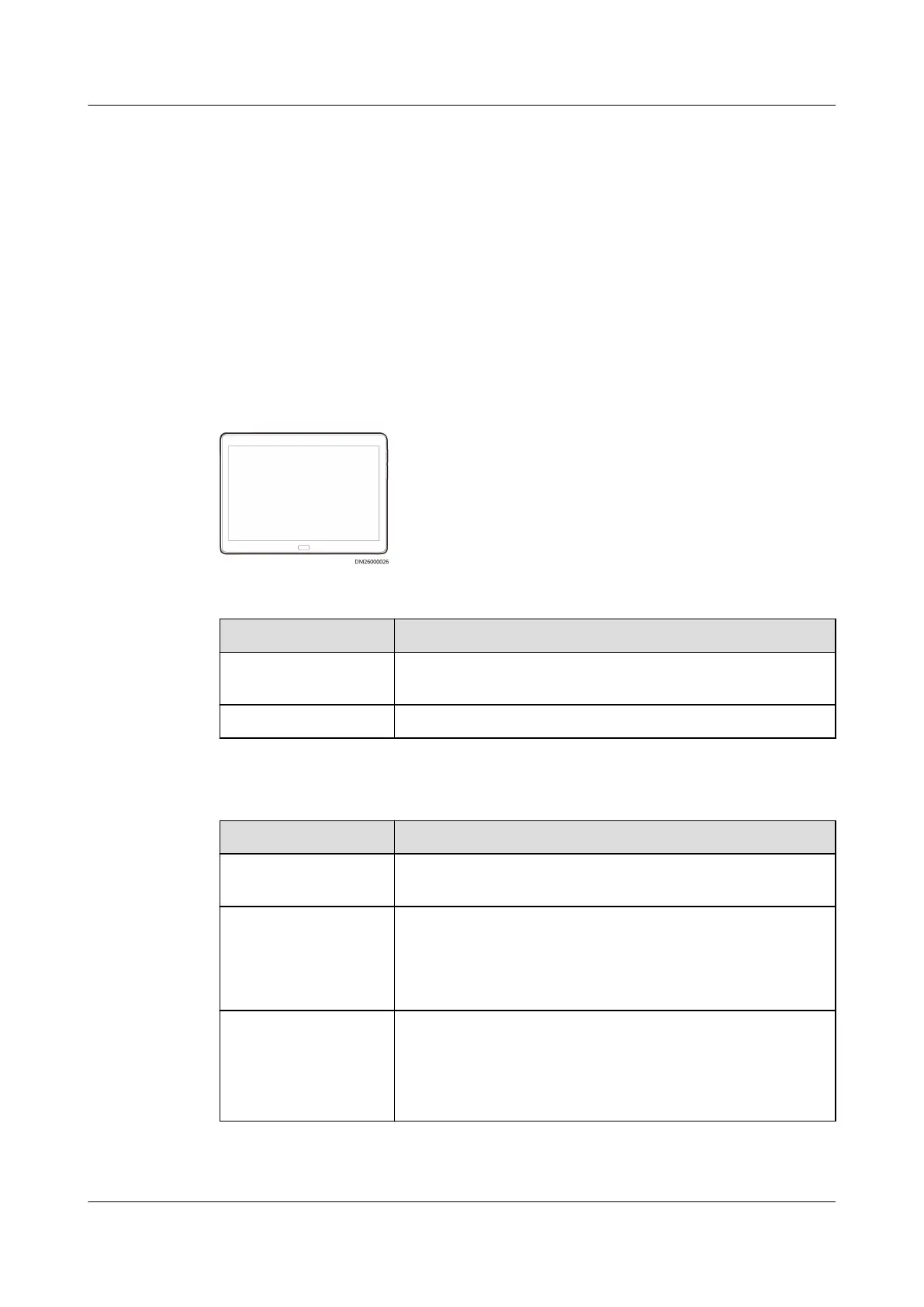

Figure 3-29 PAD
Table 3-31 PAD structural specications
Item
Specications
Dimensions (L x W x
H)
243 mm x 164 mm x 7.8 mm
Weight About 460 g
Table 3-32 PAD technical specications
Item
Specications
Touchscreen 10.1-inch, 1920 x 1200 resolution, IPS screen, and multi-
touch
Storage ● Machine: 32 GB
● Memory: 3 GB
● Extension card: Micro SD, a maximum of 256 GB
(non-standard conguration)
Button/Port ● Touch button + power switch and volume button
● 3.5 mm stereo headphones port
● Micro SD card port
● MicroUSB port
FusionModule800 Smart Small Data Center
User Manual 3 System Architecture
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 58
