Preparations
● Tool: ESD gloves
● Material: eLight strip light
Procedure
Step 1 Remove the fastener from the strip light to be replaced.
Step 2 Remove the strip light.
Step 3 Take out the new strip light and reserve the end with a wiring terminal on the top
of the IT cabinet at an end of the row.
Step 4 Route the new strip light from the top of the cabinet at one end to the top of the
cabinet at the other end, and secure the strip light using the fastener.
----End
6.4.4.17 Replacing an eLight Actuator
Impact on the System
The eLight strip light is o during replacement.
Prerequisites
● Tools: ESD gloves, Phillips screwdriver, step ladder, label, marker
● Material: eLight actuator

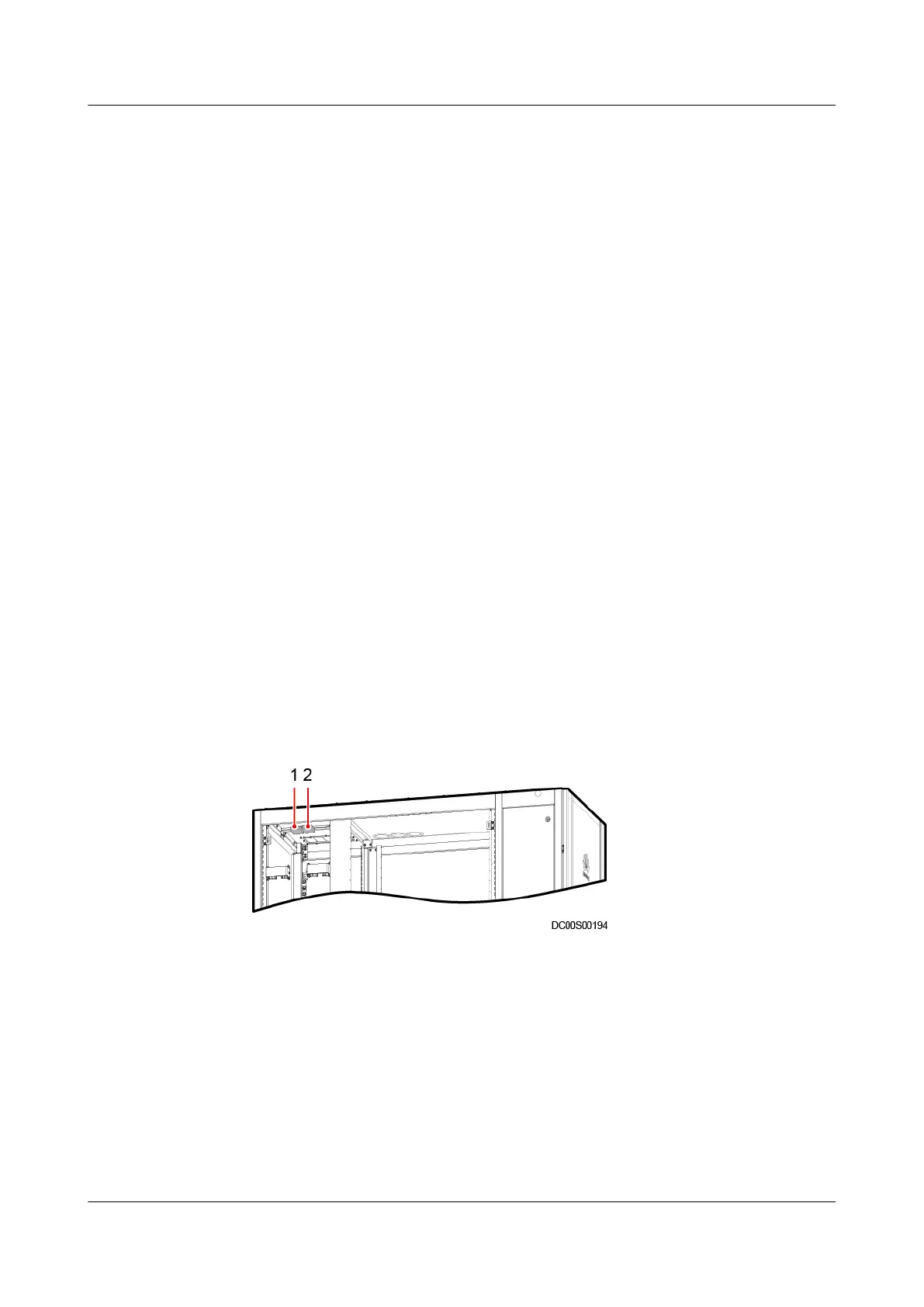

Figure 6-71 Positions of the eLight actuator and power module
(1) eLight actuator
(2) eLight power module
Procedure
Step 1 Label each cable based on the corresponding ports on the eLight actuator.
Step 2 Remove cables from the eLight actuator.
Step 3 Remove the old eLight actuator from guide rails.
Step 4 Install the new eLight actuator in the correct position and connect the cables.
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 479
