The customer needs to purchase power cables based on site requirements.
4.1.4 Site Requirements
● The cabinet layouts shown in the gures are for ease of description and do not provide
reference for engineering layout.
● If the site conditions do not meet the space requirements, contact Huawei technical
support.

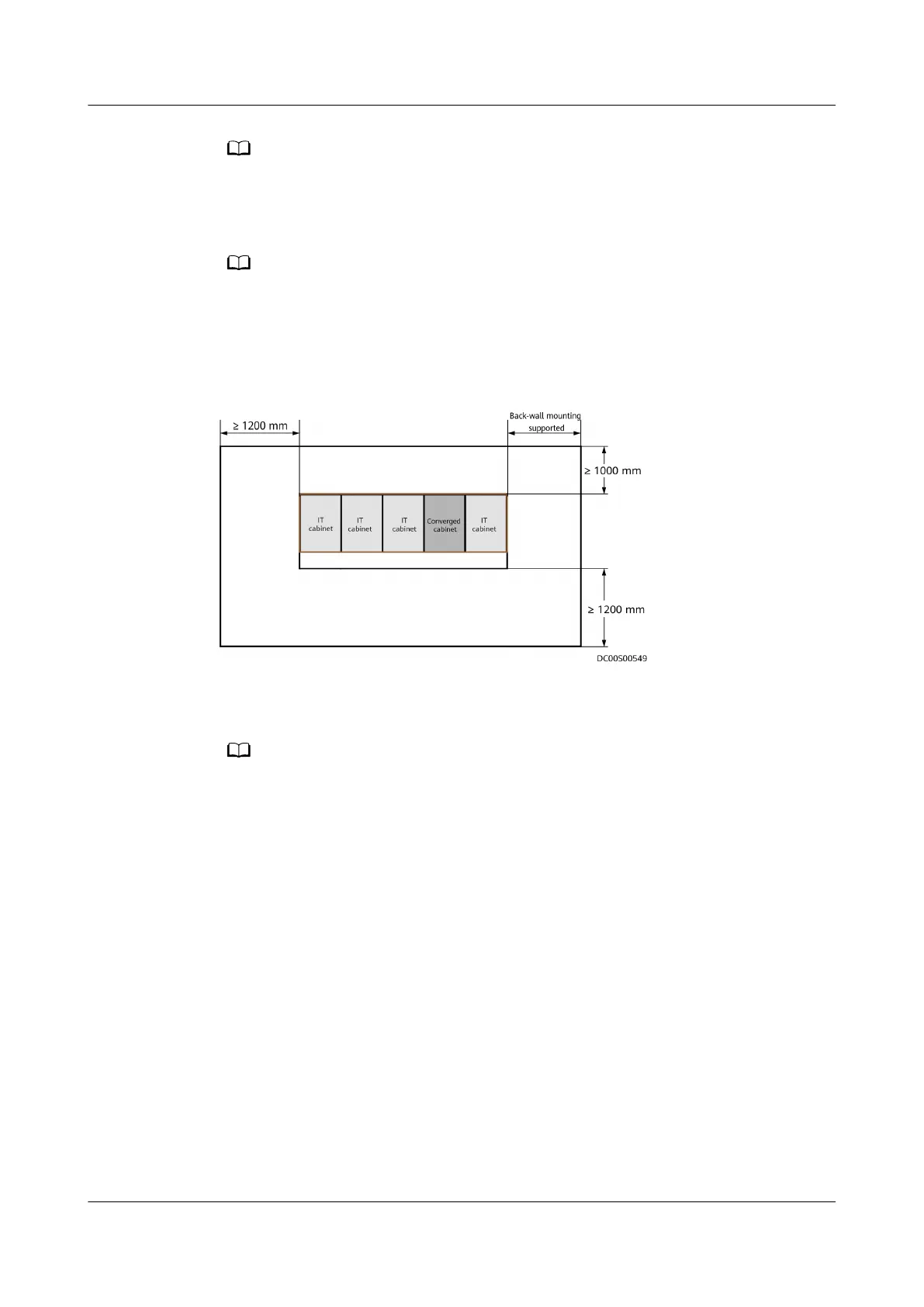

Figure 4-1 Site space requirements
4.1.5 Installation Scenarios
The component layout illustrates only the positions of components. The actual component
installation positions prevail.
Dierent quantities of batteries can be installed in the Converged Cabinet
depending on
congurations. Figure 4-2 shows the recommended layout.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 97
