Step 5 Secure the ngerprint and card reader to the bottom plate.
Step 6 Congure the new ngerprint and card reader by following the instructions
provided in the document delivered with it.
Step 7 Choose Monitoring > System > ECC800-Pro > Controls and delete the device
failing in communication.
Step 8 Refer to the section about commissioning the in-room access control system in the
installation guide and check that the
ngerprint and card reader with a keypad
functions properly.
----End
Follow-up Procedure
Congure the new ngerprint and card reader by following the instructions
provided in the document delivered with the ECC800-Pro.
6.4.4.22 Replacing a Card Reader with a Keypad
Prerequisites
● Recommended tool: Phillips screwdriver
● A card reader with a keypad needs to be replaced.
● A spare card reader with a keypad of the same model is available and
functional.
Context

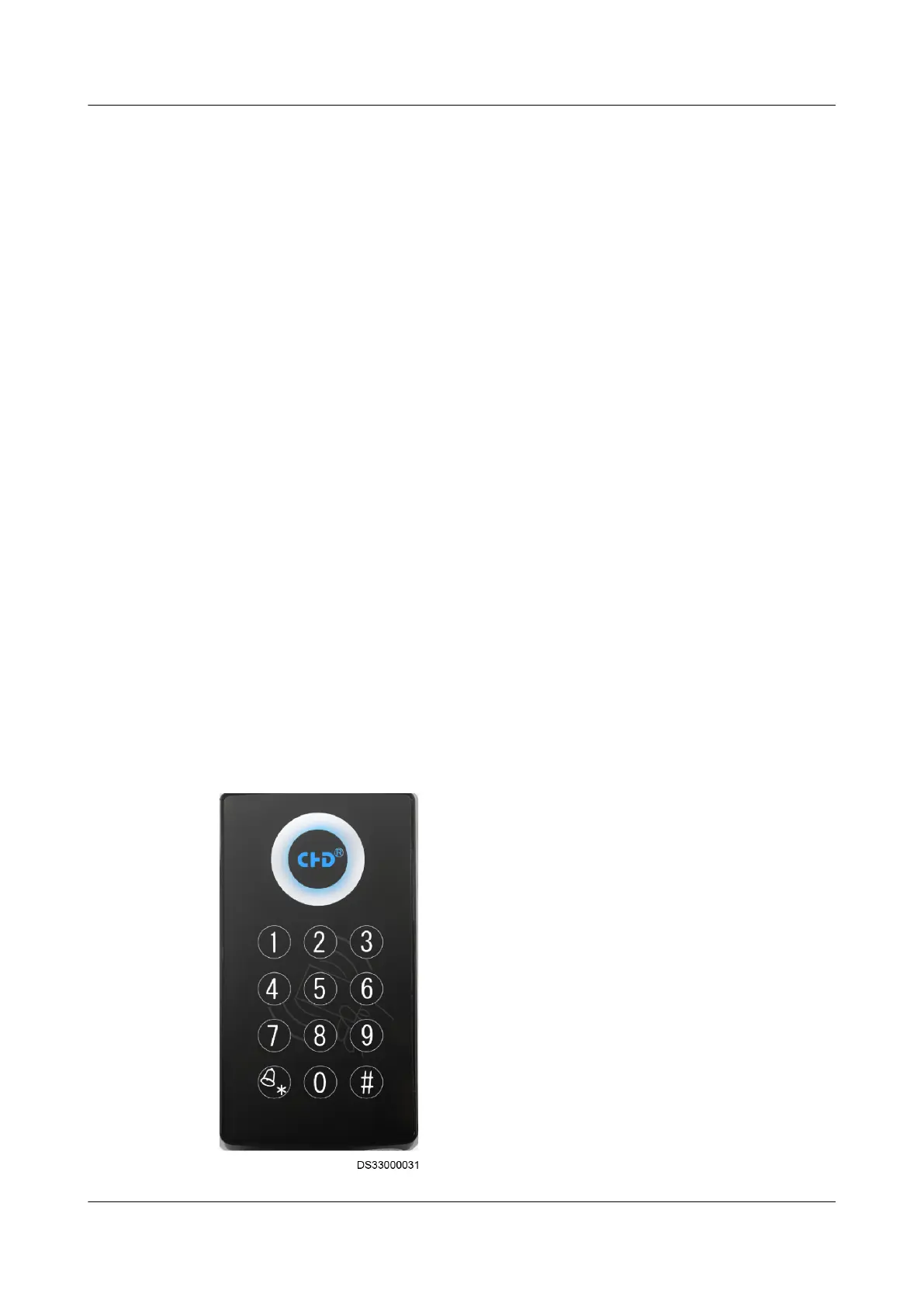

Figure 6-79 Card reader with a keypad
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 485
