Context

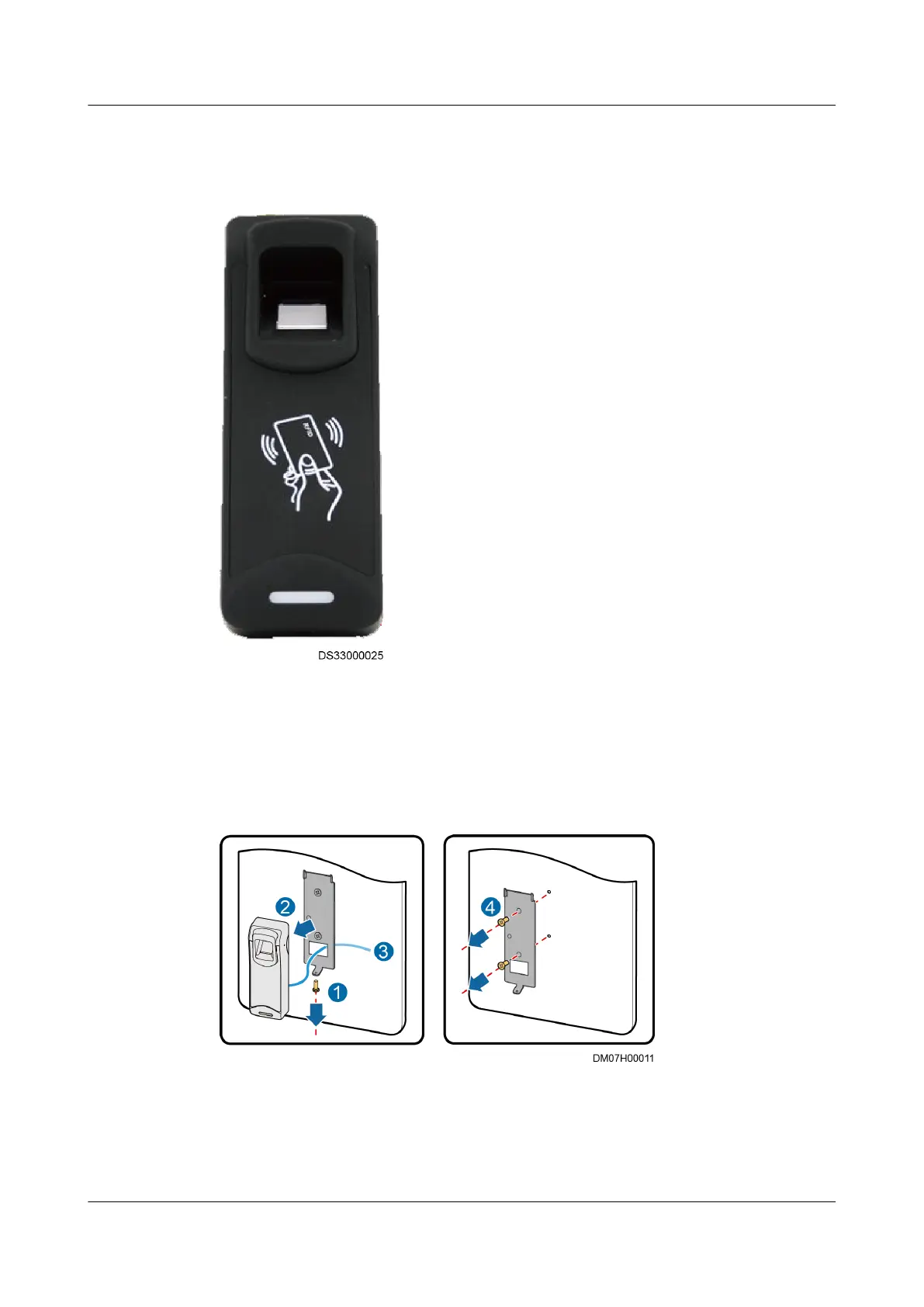

Figure 6-77 Fingerprint and card reader
Procedure
Step 1 Remove the screws that secure the
ngerprint and card reader, and remove the
cable, as shown by (1), (2), and (3) in Figure 6-78.
Figure 6-78 Removing the bottom plate
Step 2 Remove the original bottom plate, as shown by (4) in Figure 6-78.
Step 3 Take out the bottom plate of the new ngerprint and card reader and secure it.
Step 4 Connect the cable.
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 484
