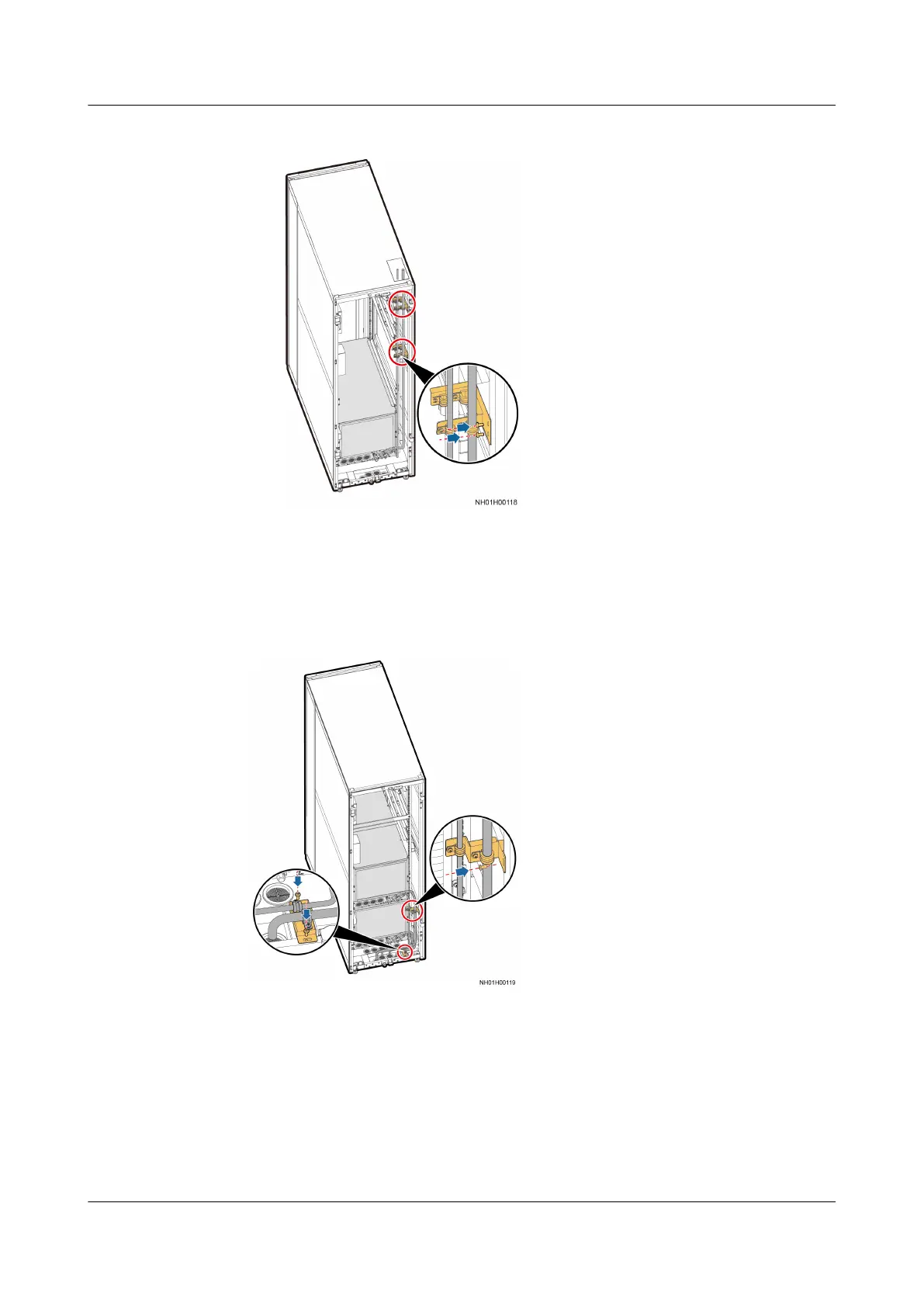

Figure 4-53 Top pipe routing inside the IT cabinet
Bottom Pipe Routing
● Laying out pipes inside the converged cabinet
Figure 4-54 shows the pipe layout.
Figure 4-54 Bottom pipe routing inside the converged cabinet
● (Optional for installing the second smart cooling product) Laying out pipes
inside the IT cabinet
Figure 4-55 shows the pipe layout.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 134
