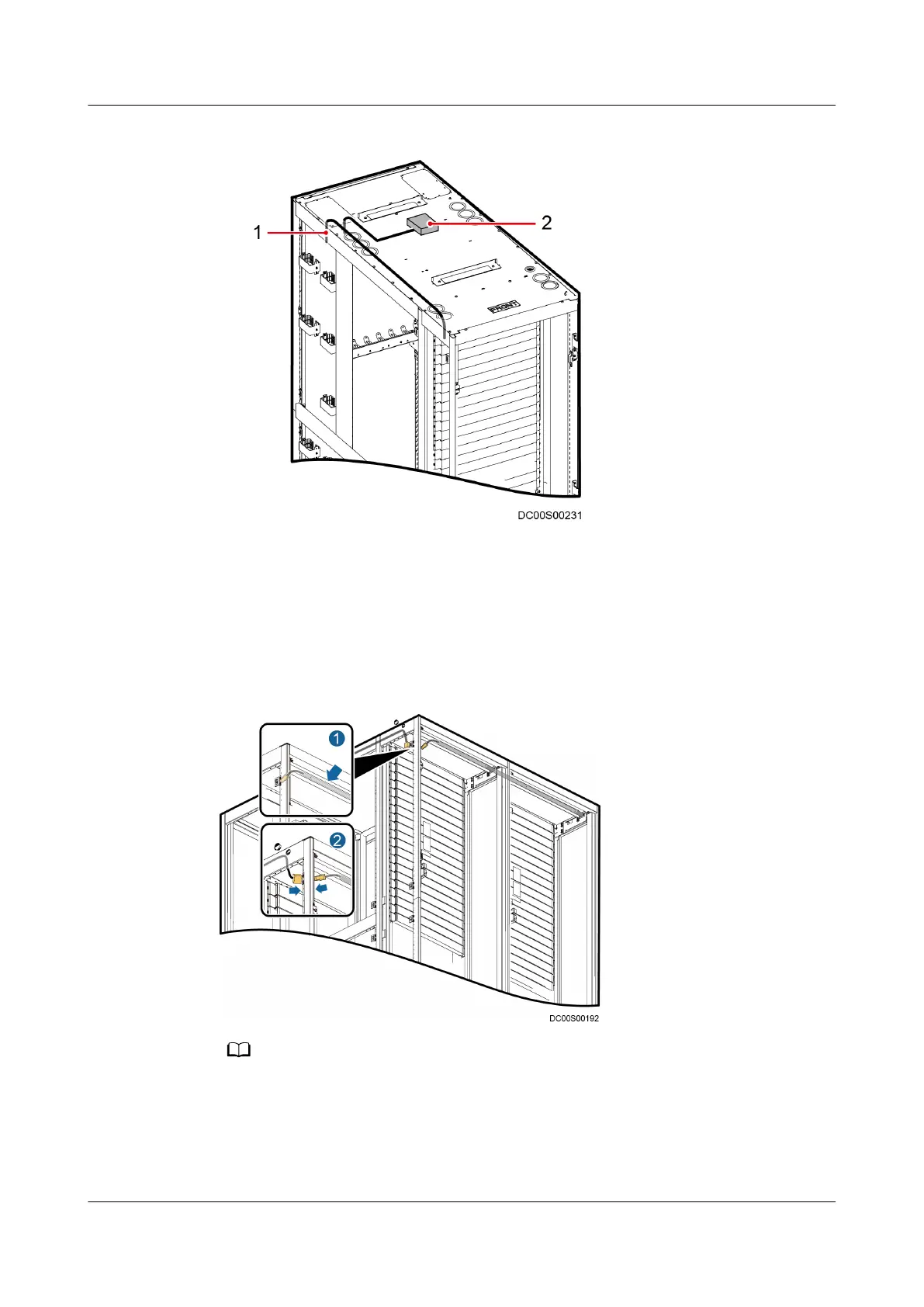

Figure 4-30 Routing a strip light extension cable
(1) Strip light extension cable (2) ETH converter
2. Route the strip light from the top of the cabinet at one end to the top of the
cabinet at the other end, and secure the strip light using the fastener.
Step 2 Pull the strip light and extension cable straight and interconnect the terminals.
Figure 4-31 Installing a strip light
● The gure is for reference only.
● The eLight strip light can be installed only for a maximum of nine cabinets.
Step 3 Install the eLight actuator and power module.
1. Open the rear door of the end cabinet.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 117
