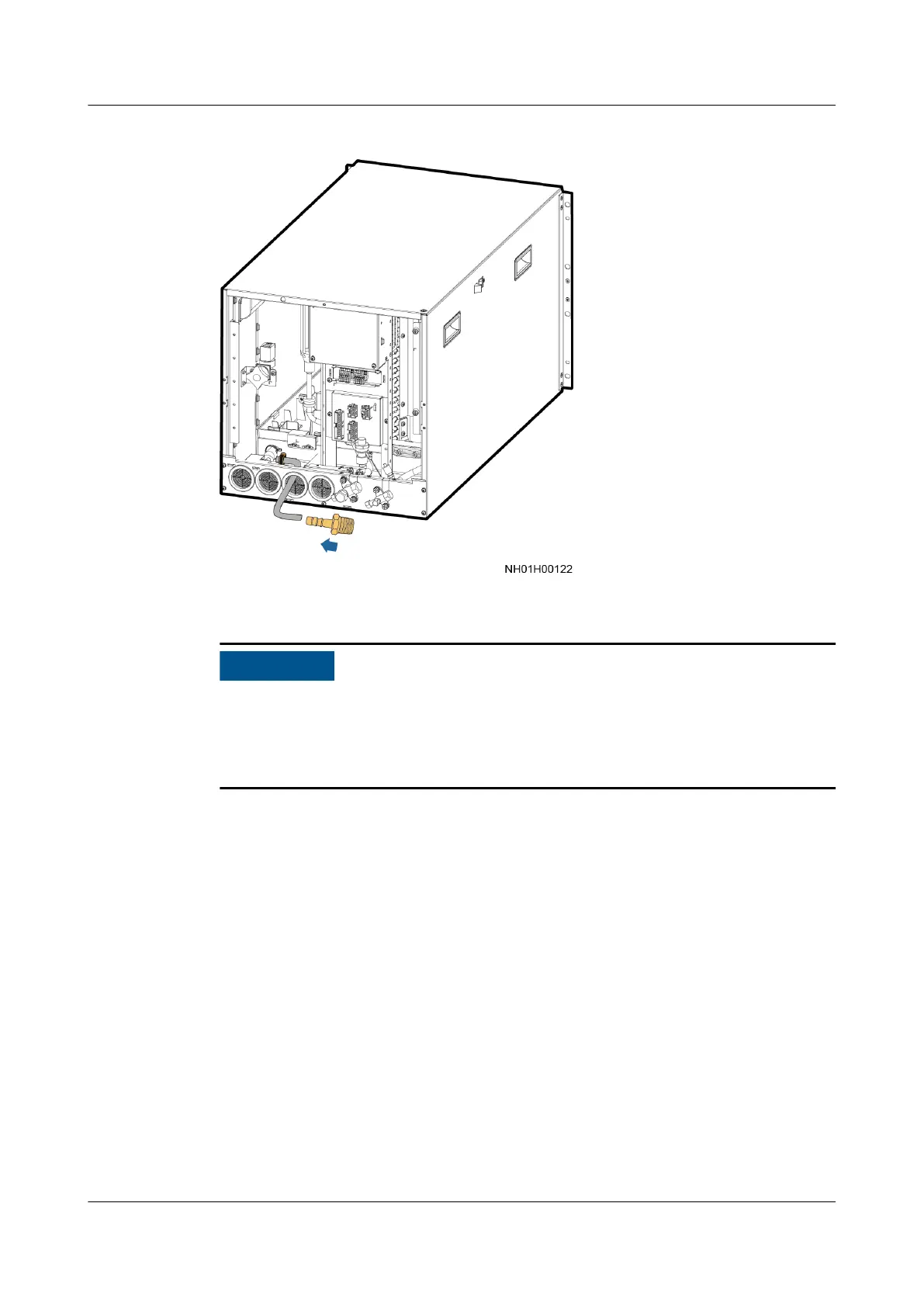

Figure 4-68 Connecting a drainpipe
Step 2 Route the bottom drainpipe.
● The smart cooling product tting bag contains drainpipe connectors. Choose
hoses or rigid pipes based on site requirements.
● The drainpipe inside the indoor unit should be wrapped with the thermal
insulation pipe in accessories.
1. Break the rubber ring on the water pipe hole at the bottom of the cabinet.
2. Figure 4-69 shows the bottom drainpipe routing.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 147
