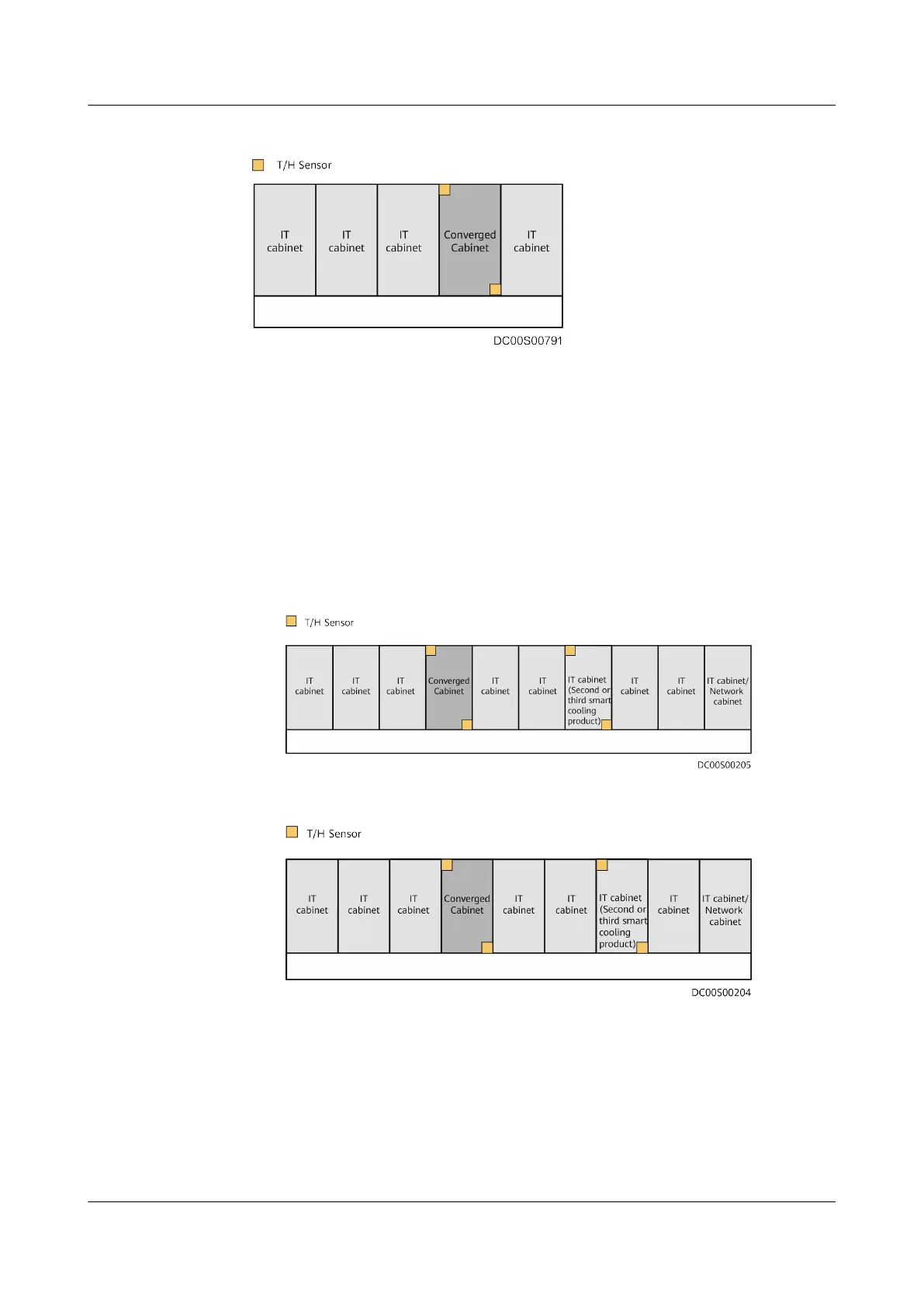

Figure 4-106 T/H sensor conguration
● If the total number of IT cabinets and network cabinets is greater than six,
four aisle T/H sensors are congured. Install two sensors on the front and rear
right posts of the Converged Cabinet, and the other two on the front and rear
right posts of the IT cabinet where the second or third NetCol is installed.
– If the total number of IT cabinets and network cabinets is less than six,
the second NetCol is installed in the IT cabinet to the right of the
Converged Cabinet.
– If more than six IT cabinets and network cabinets are
congured, the
second or third NetCol is installed in the middle cabinet between the
Converged Cabinet and the farthest cabinet.
Figure 4-107 T/H sensor
conguration (for an even number of cabinets)
Figure 4-108 T/H sensor conguration (for an odd number of cabinets)
– Each IT cabinet or network cabinet is congured with two temperature
sensors.
