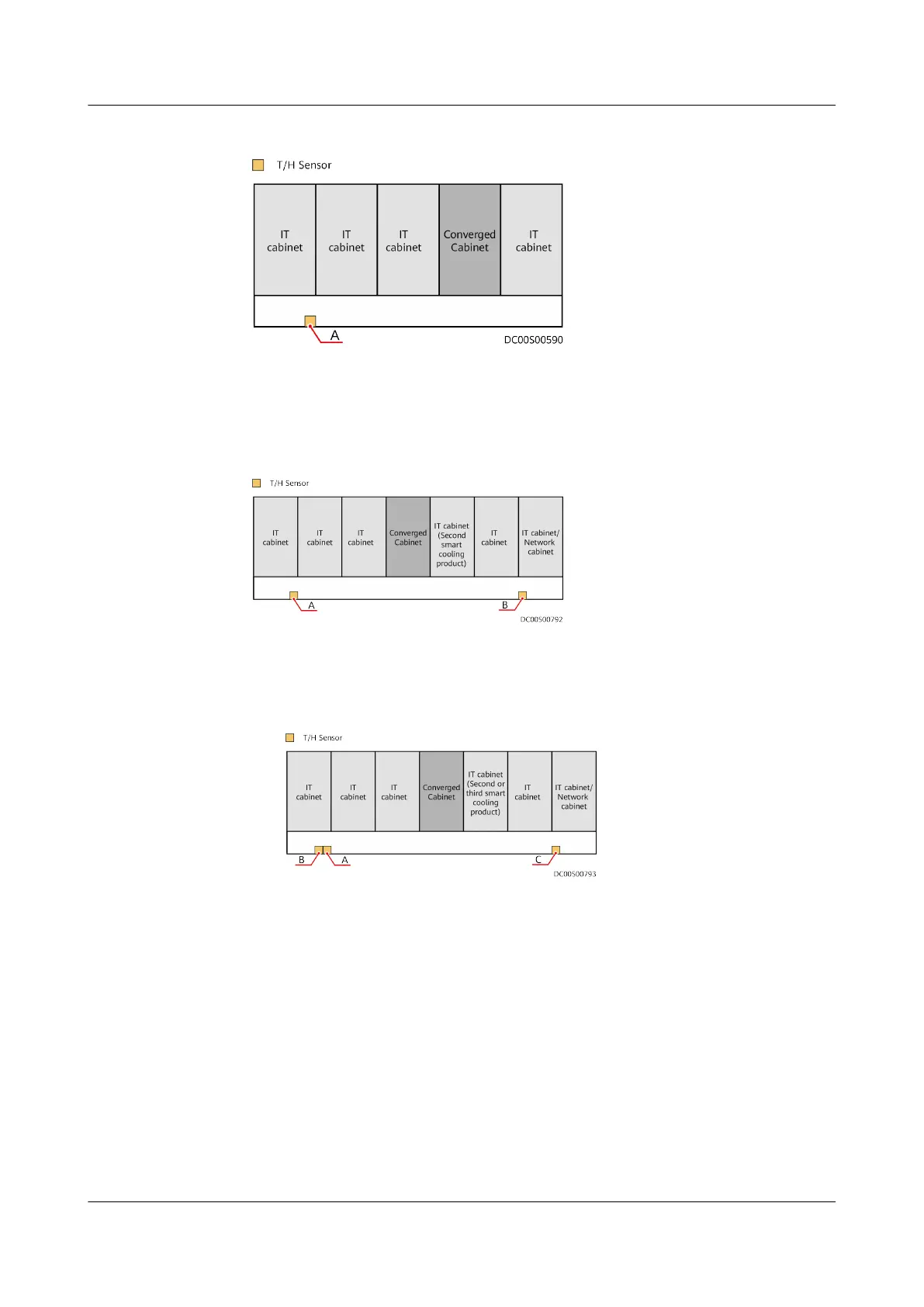

Figure 4-116 T/H sensor conguration
A: Position for installing the T/H sensor for the NetCol at the bottom of the Converged
Cabinet, 28 U
● Installing T/H sensors when two NetCols are congured (Optional)
Figure 4-117 T/H sensor conguration
● Installing T/H sensors when three NetCols are congured (Optional)
a.
Congure T/H sensors in scenario 1.
Figure 4-118 T/H sensor conguration
b. Congure T/H sensors in scenario 2.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 180
