Context
A smart ETH gateway can be installed in the following two positions based on the
project conditions:
● If the M-shaped cable troughs are deployed for the smart module, install the
smart ETH gateway on the M-shaped cable trough on the top of the cabinet.

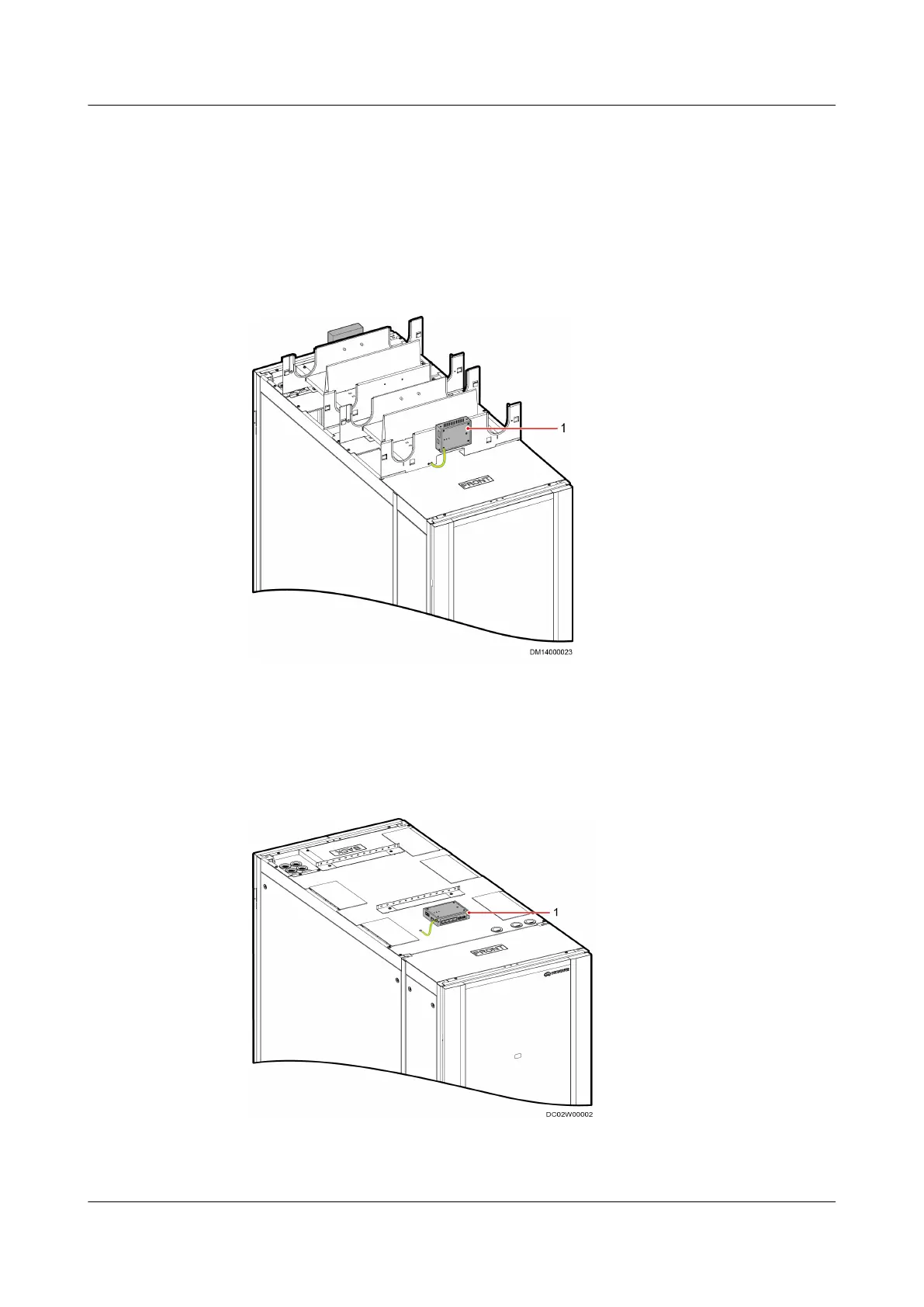

Figure 4-139 Position 1 for installing a smart ETH gateway
(1) Smart ETH gateway
● If M-shaped cable troughs are not deployed for the Smart Module, install the
smart ETH gateway on the top of the cabinet.
Figure 4-140 Position 2 for installing a smart ETH gateway
(1) Smart ETH gateway
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 192
