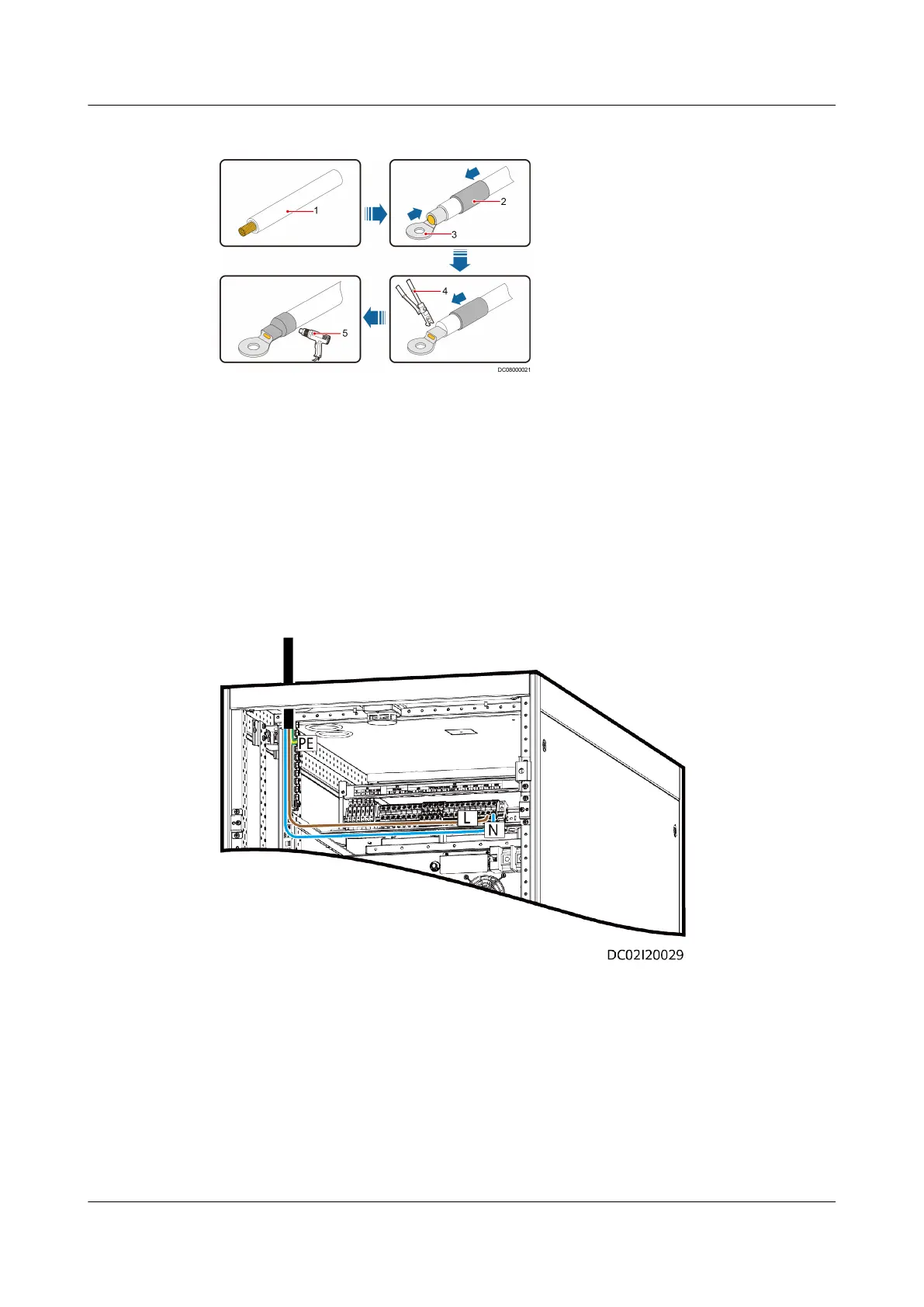

Figure 4-201 Preparing an OT terminal
(1) Cable (2) Heat shrink tubing (3) OT terminal
(4) Hydraulic pliers (5) Heat gun
Procedure
Step 1 Connect output power cables to the PDU.
Figure 4-202 Connecting output power cables to the PDU (for IT cabinets in Asia,
Europe, and Africa)
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 229
