Context

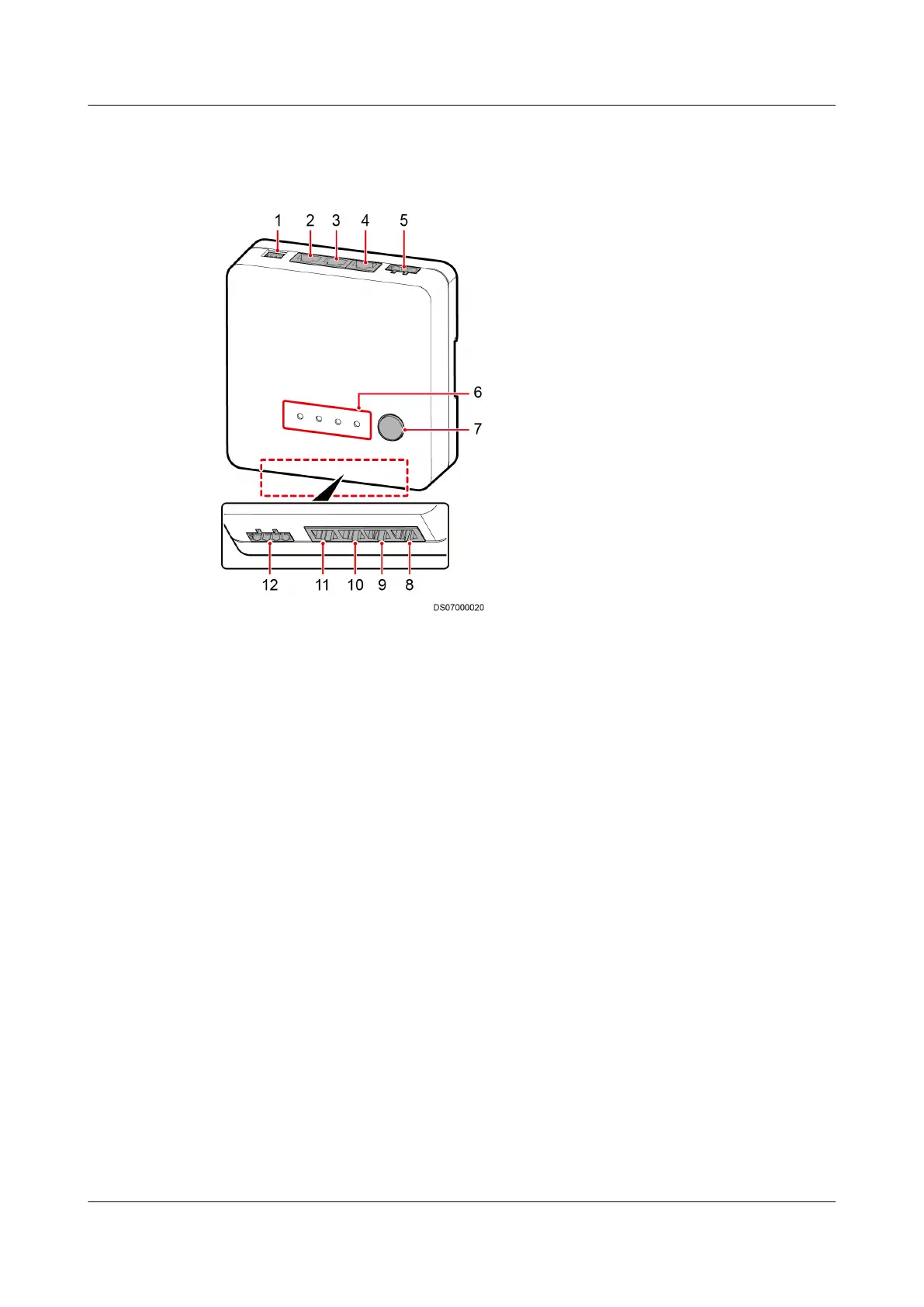

Figure 4-215 Description of ports on the access actuator
(1) 48 V power port (2) PoE port (3) RS485 port (COM2)
(4) RS485 port (COM1) (5) Address DIP switch (6) Status indicator
(7) BLINK button (8) WG_2 Wiegand
interface
(9) WG_1 Wiegand
interface
(10) AI/DI_2 dry contact (11) AI/DI_1 dry contact (12) LOCK/GND/
GATE/COM/door status
sensor and magnetic lock
port
Procedure
Step 1 Remove the covers from the waterproof box and cable holes of the access
actuator.
Step 2 Connect cables by referring to Figure 4-216.
1. Connect the smart ETH gateway to the access actuator using a cable.
2. Connect the single/double door magnetic lock to the access actuator using a
cable.
3. Connect the access controller to the access actuator using a cable.
4. Connect the exit button to the access actuator using a cable.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 243
