Cabinet Door
● In cold and hot aisle containment, a sealed glass door is congured at the
front and a sealed sheet metal door at the rear.
● By default, the front and rear doors of a cabinet are equipped with electronic
clasp locks, which can be unlocked only by using dedicated keys.

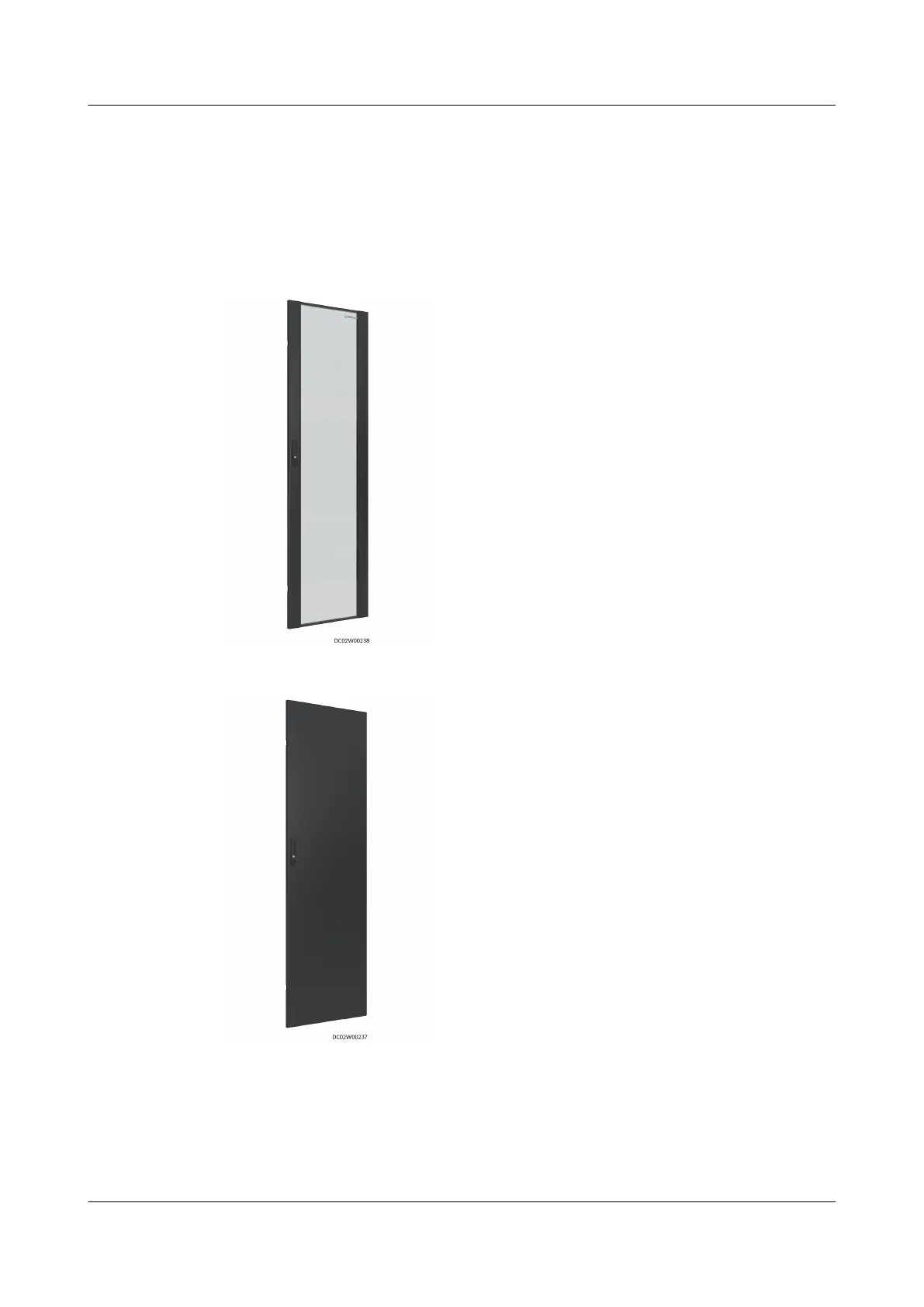

Figure 3-7 Front door
Figure 3-8 Rear door
Cable Trough (Optional)
● Cable troughs are clamped one by one to form a whole. A cable trough is
assembled by clamping two side panels, one pallet, and one bae (used to
separate ELV optical
ber cables from ELV network cables and electrical route
A from electrical route B).
FusionModule800 Smart Small Data Center
User Manual 3 System Architecture
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 25
