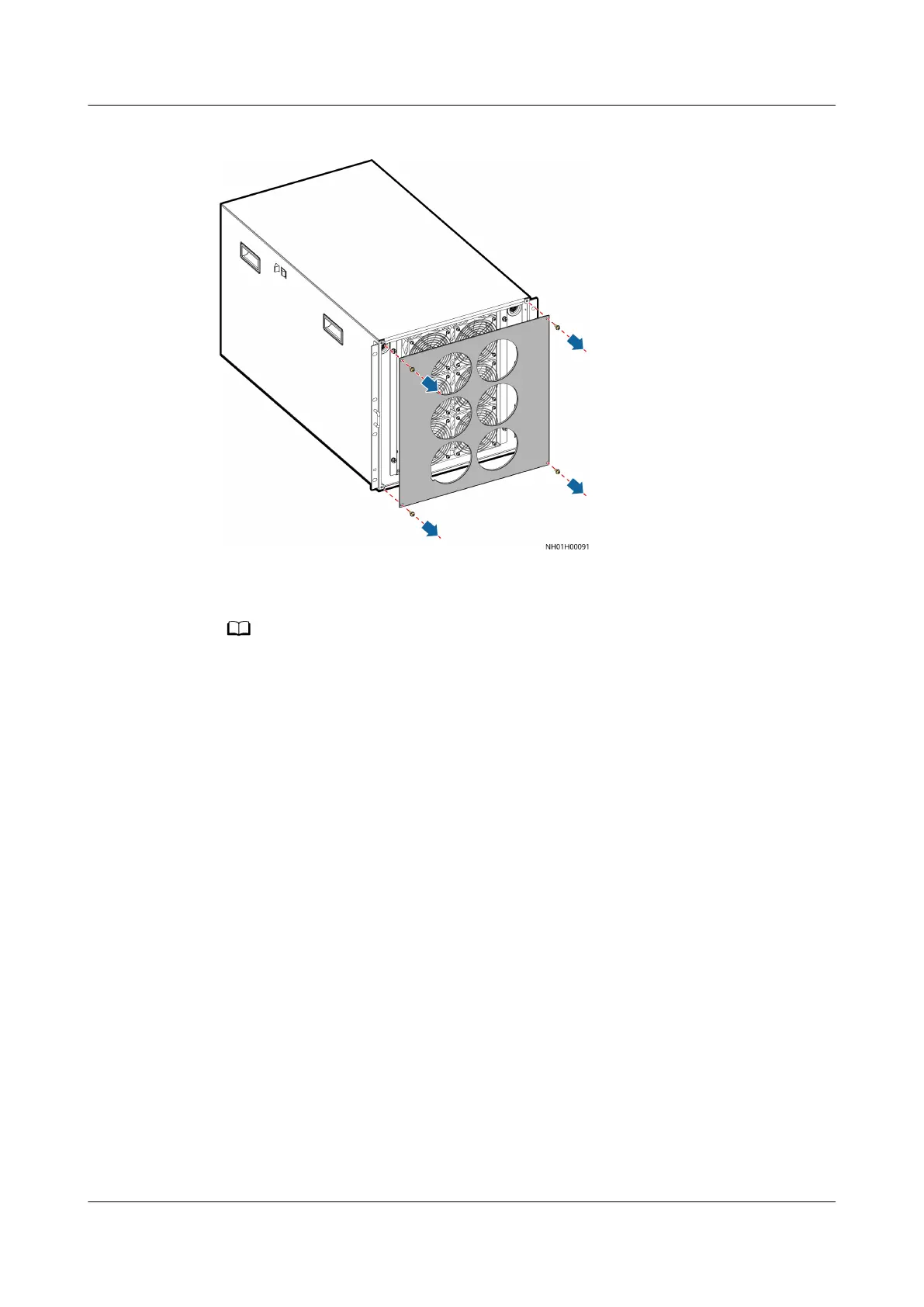

Figure 6-14 Removing a fan bae plate
Step 5 (Optional) Cut the cable tie securing the NTC sensor on fan 3 using scissors or
diagonal pliers, and remove the NTC sensor.
The NTC sensor bound to fan 3 needs to be removed when only fan 3 is replaced.
Step 6 Cut the cable tie securing the fan terminal using scissors or diagonal pliers and
pull out the fan terminal.
Step 7 Remove the four M4 screws from the fan using a Phillips screwdriver, and remove
the fan guard and fan, as shown in Figure 6-15.
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 416
To Next Page
