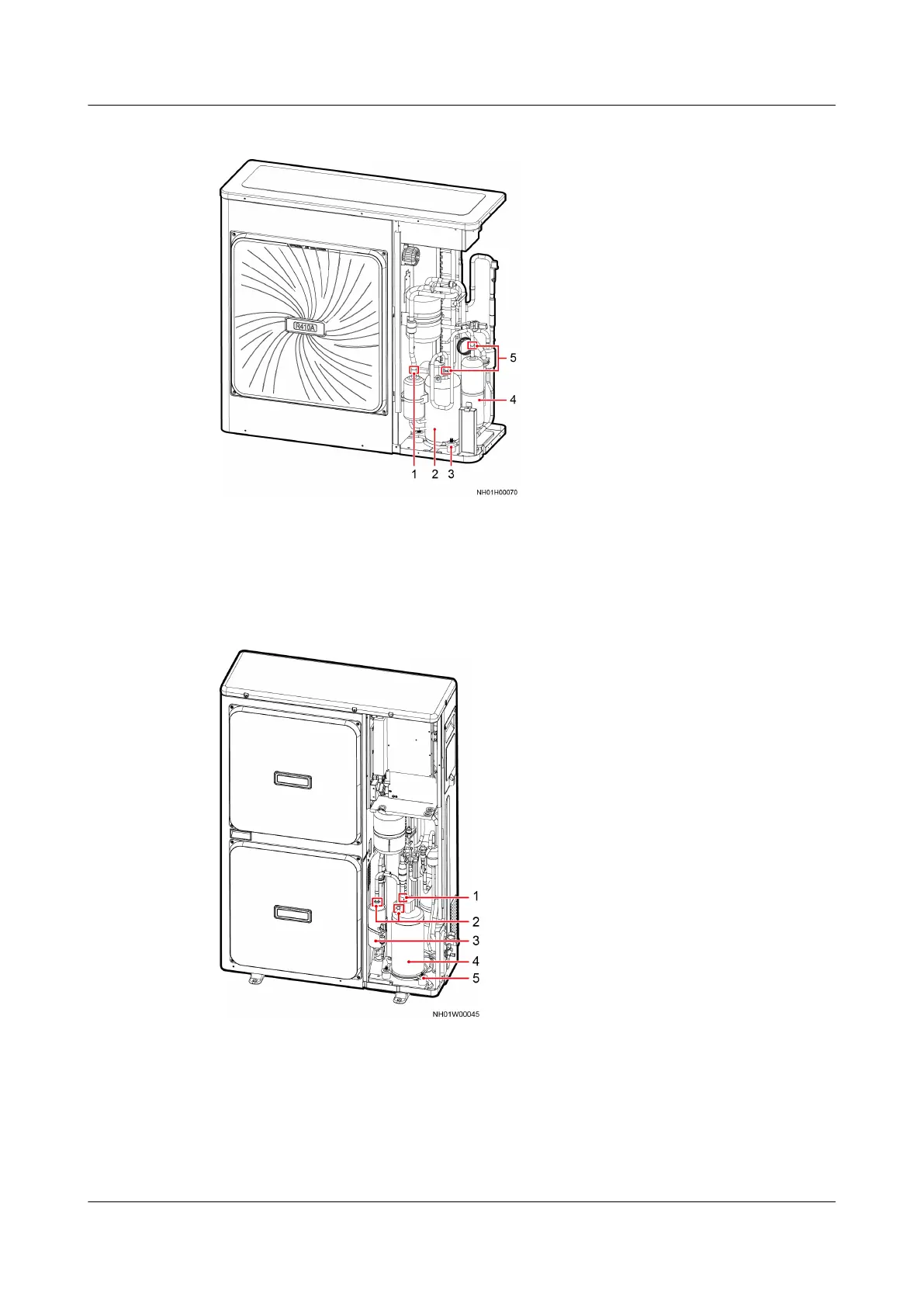

Figure 6-34 Position of the compressor (for NetCol500-A018)
(1) Welding point for the
suction pipe
(2) Compressor (3) Bolts on the compressor
base
(4) Oil separator (5) Welding point for the
discharge pipe
Figure 6-35 Position of the compressor (for NetCol500-A020)
(1) Welding point for the
suction pipe
(2) Welding point for the
discharge pipe
(3) Oil separator
(4) Compressor (5) Bolts on the compressor
base
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 444
