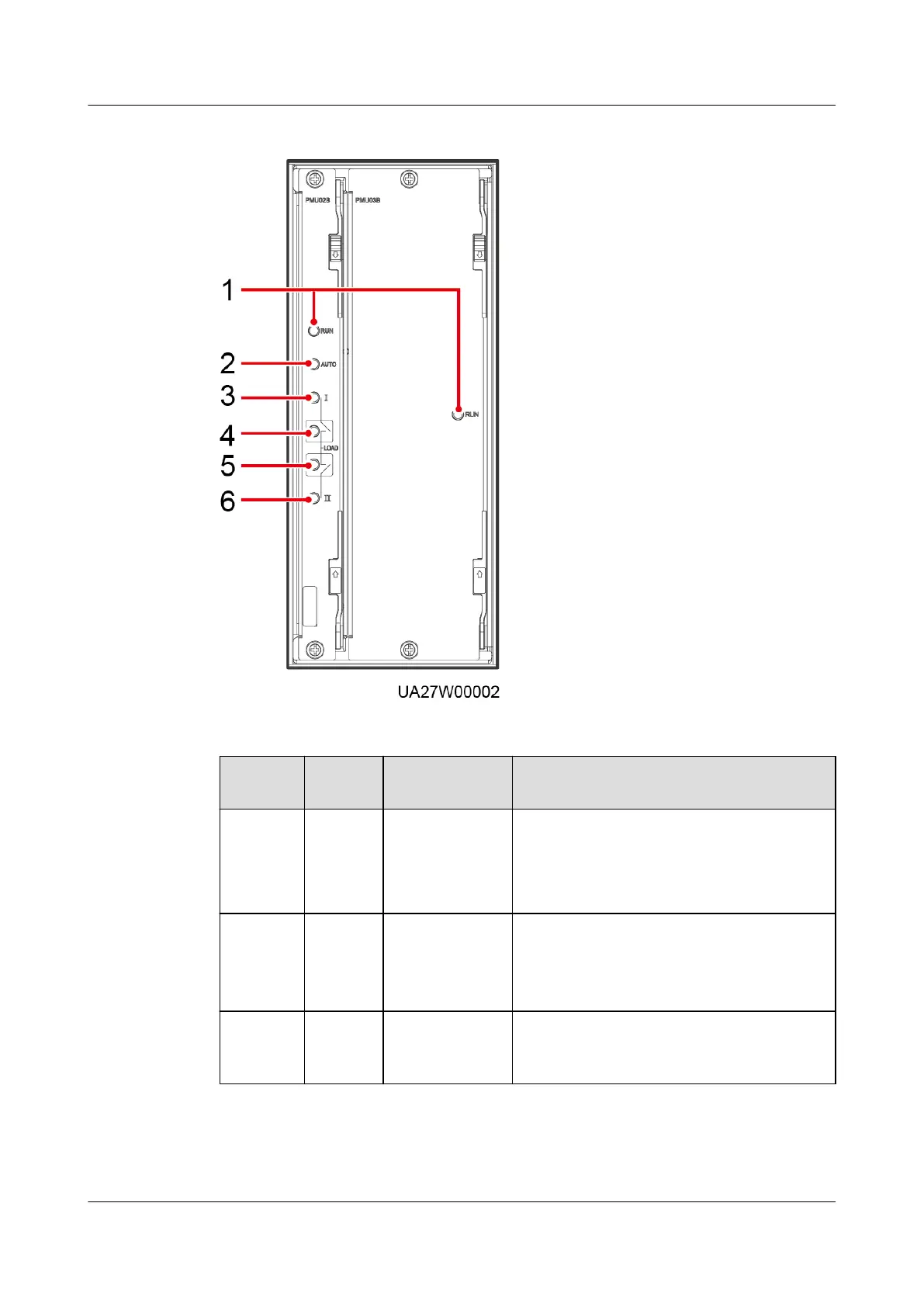

Figure 3-16 ATS monitoring board
Table 3-8 LED indicator status description
No.
Indicat
or
Name Description
1 RUN ATS running
status
indicator
● Steady green: working properly
● Steady yellow: warning or minor
alarm
● Steady red: major or critical alarm
2 AUTO ATS working
mode indicator
● Steady green: automatic control
mode
● Steady red: manual mode or non-
reghting power disconnection
3 I Route I power
status
indicator
● Steady green: normal
● Steady red: abnormal
FusionModule800 Smart Small Data Center
User Manual 3 System Architecture
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 34
