Item Specications
Storage temperature –40°C to +70°C
Relative humidity 5%–95% RH (non-condensing)
Altitude 0–4000 m (When the altitude is between 3000 m and
4000 m, the temperature decreases by 1°C for each
additional 200 m.)
Table 3-16 ECC800-Pro structural specications
Item Specications
Dimensions (L x W x H) 442 mm x 330 mm x 43.6 mm
Weight 6.3 kg (with a single power module
and a main control module)
Color Black
Installation requirements Can be installed in a 1 U space in a
standard 19-inch cabinet
Environmental protection RoHS5, REACH, WEEE

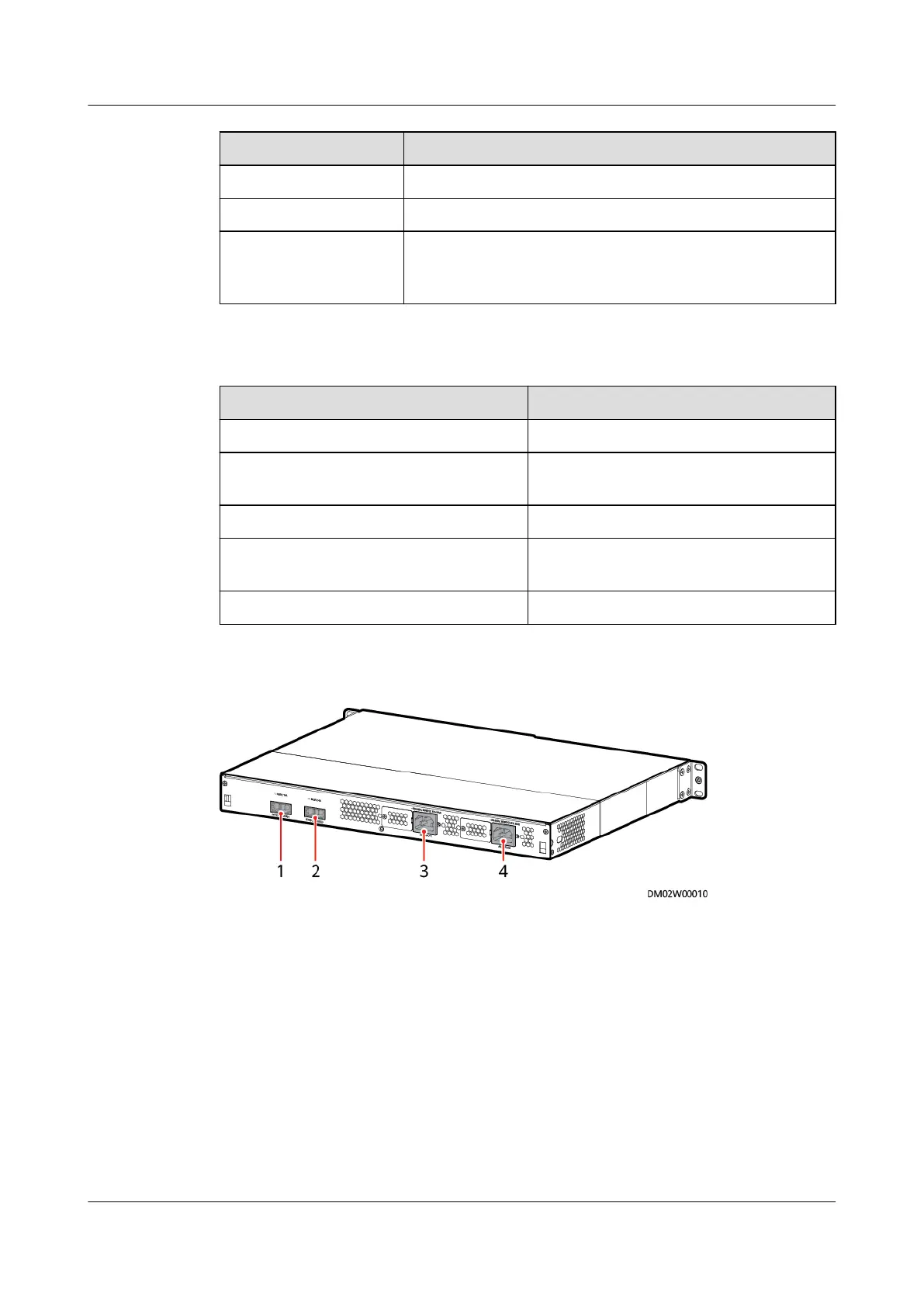

Figure 3-25 ECC800-Pro (rear view)
(1) 53.5V DC_OUT1
(2) 53.5V DC_OUT2 (3) AC_INPUT1
(4) AC_INPUT2
Power Port
The ECC800-Pro provides four power ports, including two AC input ports
(AC_INPUT1 and AC_INPUT2) and two DC output ports (DC_OUTPUT1 and
DC_OUTPUT2). Table 3-17 provides the power port pin
denitions.
