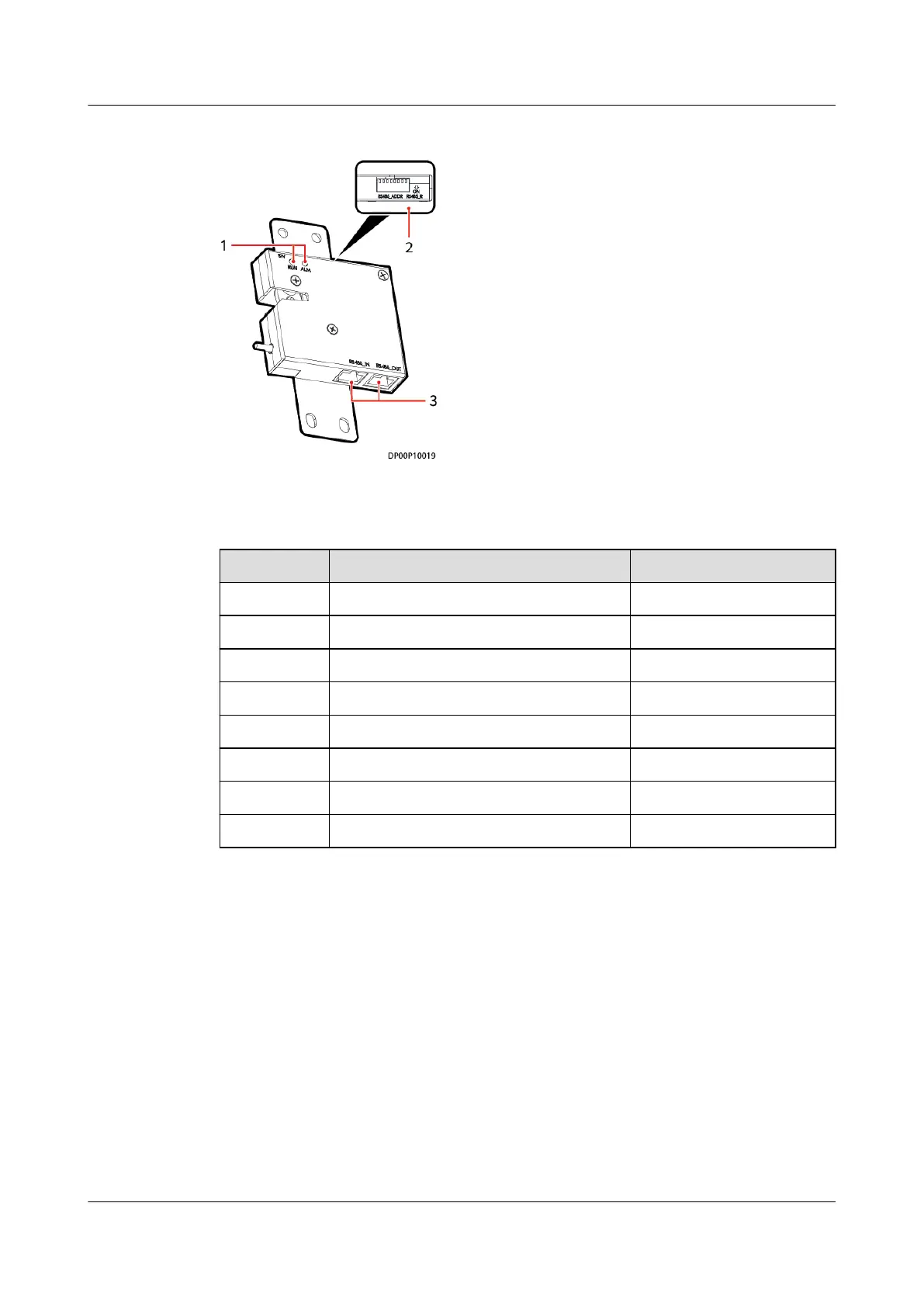

Figure 3-42 Cabinet electronic clasp lock
(1) LED indicator (2) DIP switch (3) RJ45 power port
Table 3-47 RJ45 port denitions
No. Pin Description Description
1 RS485+ RS485+
2 RS485- RS485-
3 +12 V power supply +12VDC
4 RS485+ RS485+
5 RS485- RS485-
6 - -
7 - -
8 Ground GND
FusionModule800 Smart Small Data Center
User Manual 3 System Architecture
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 72
