N2000H V3 Appliance
User Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

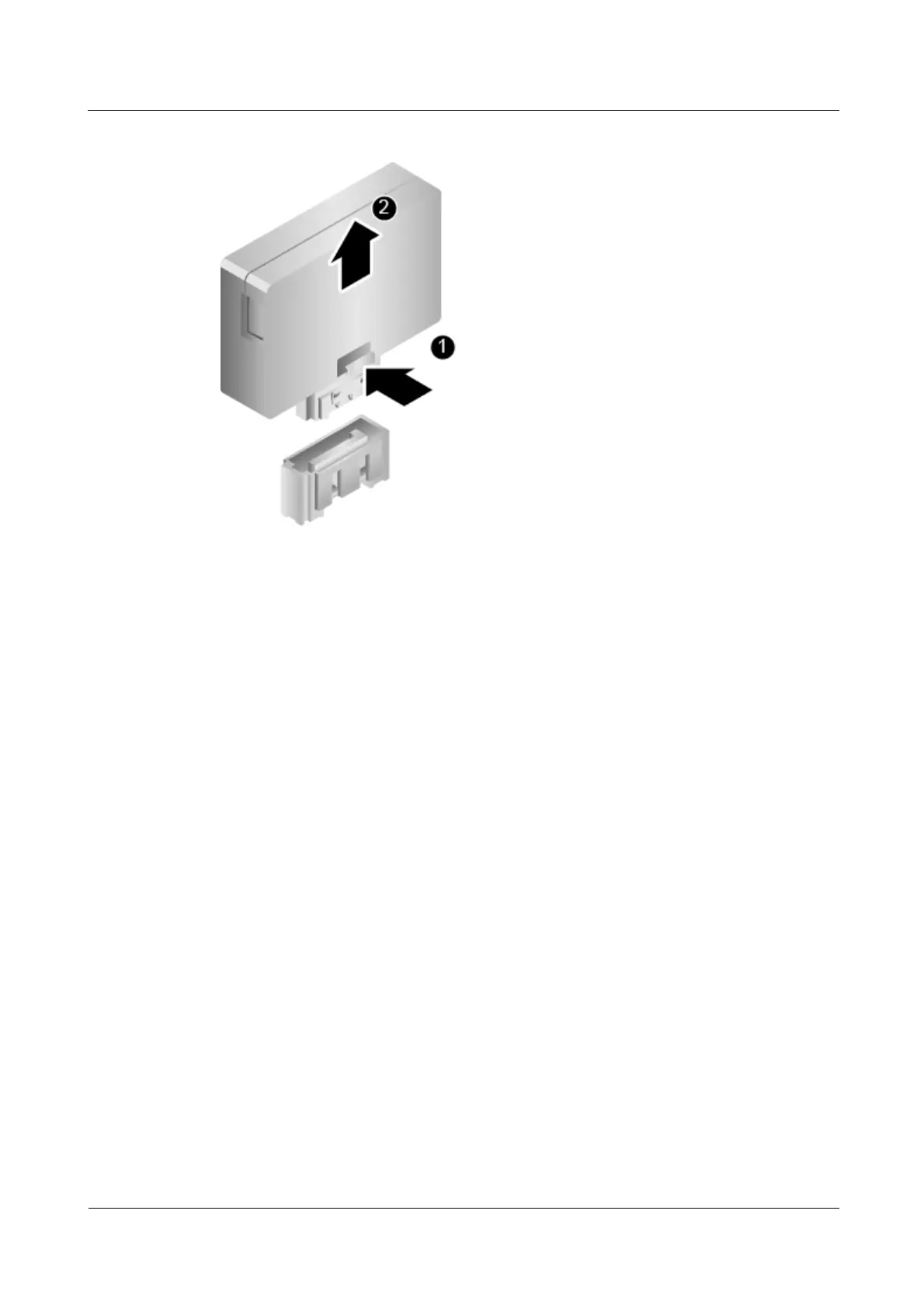

Figure 7-70 Removing a SATA DOM
Step 3 Remove the SATA DOM from the mainboard. See step (2) in Figure 5-70.
Step 4 Place the removed SATA DOM in an ESD bag.
----End
7.35 Installing a SATA DOM
This topic describes how to install a Serial Advanced Technology Attachment (SATA) Disk on
Module (DOM) to replace the original one.
Scenarios
Install a SATA DOM when the original one fails.
Prerequisites
Conditions
You have powered off the N2000H V3. For details, see 3.2 Powering Off.
You have removed the chassis cover from the N2000H V3. For details, see 5.6
Removing the Chassis Cover.
Data
You have determined the position on the N2000H V3 for installing a SATA DOM.
You have obtained the rack number and chassis number of the N2000H V3.
You have located the N2000H V3 based on the preceding information, and labeled its
panel to prevent misoperations.
Tools
