N2000H V3 Appliance
User Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

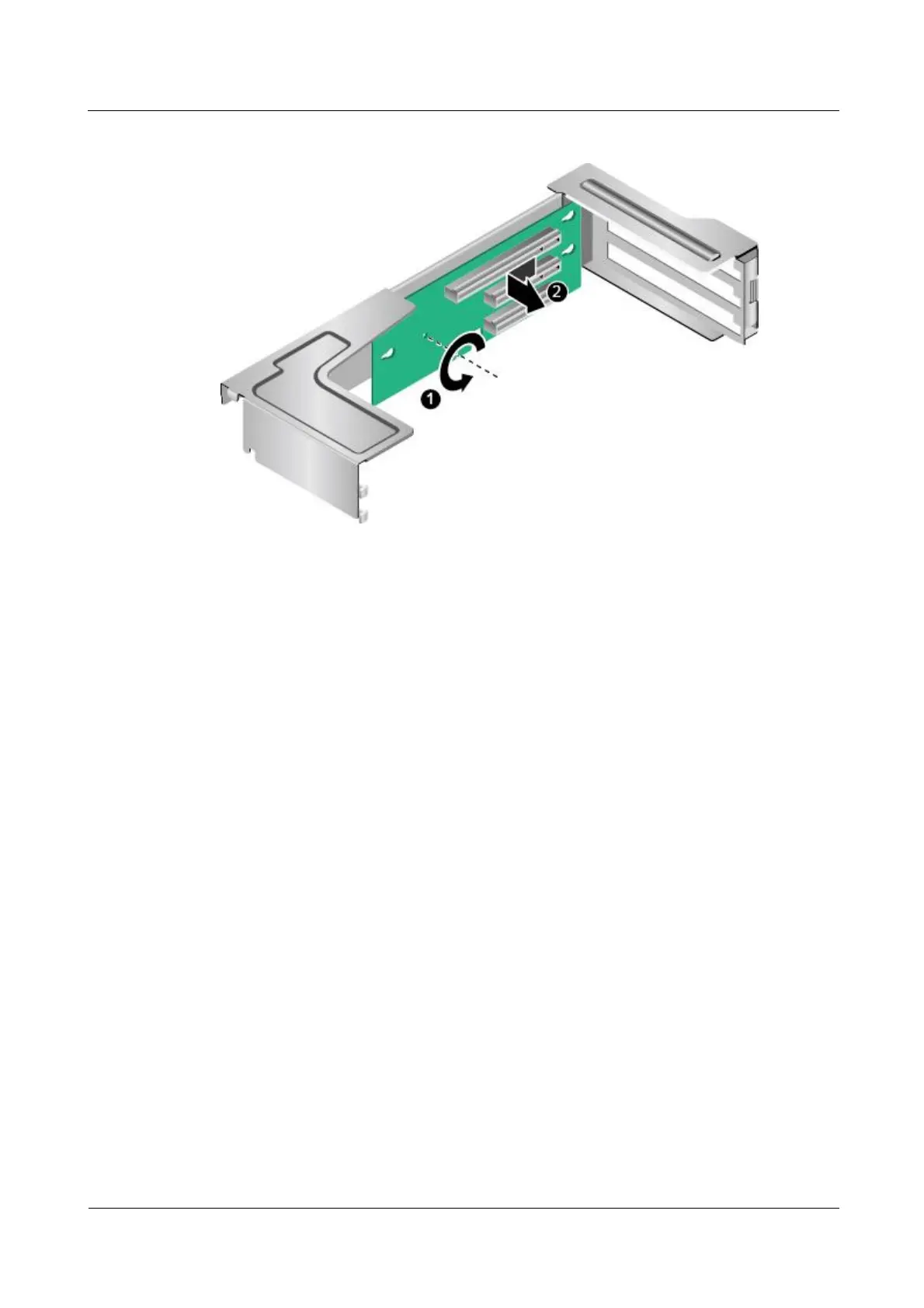

Figure 7-24 Removing a riser card
Step 5 Place the removed riser card in the ESD bag.
----End
7.13 Installing a Riser Card
This topic describes how to install a riser card.
Scenarios
Install a riser card to replace the original one.
Prerequisites
Conditions
You have powered off the N2000H V3. For details, see 3.2 Powering Off.
You have removed the chassis cover from the N2000H V3. For details, see 5.6
Removing the Chassis Cover.
Data
You have determined the position on the N2000H V3 for installing a riser card.
You have obtained the rack number and chassis number of the N2000H V3, and labeled
its panel to prevent misoperations.
Tools
ESD gloves
Packaging materials, for example, an ESD bag
