Step 3 Insert the TPM vertically downwards into the connector on the mainboard. See step (1) in
Figure 5-34.

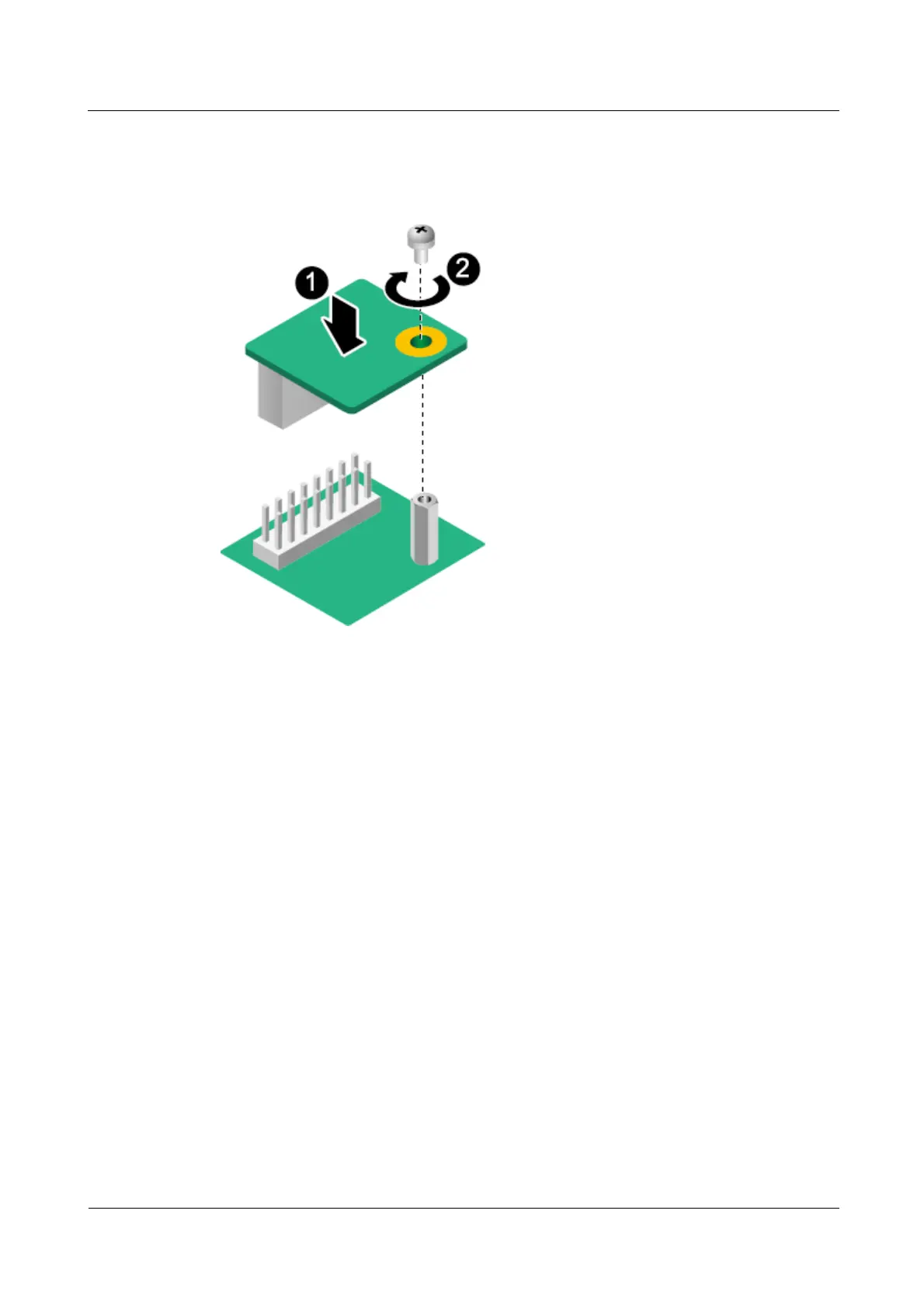

Figure 7-34 Installing a TPM
Step 4 Screw the TPM using a Phillips screwdriver. See step (2) in Figure 5-34.
----End
7.18 Removing a USB Flash Drive from the Chassis
This topic describes how to remove a USB flash drive before replacing it with a new one.
Scenarios
Remove a USB flash drive in any of the following scenarios:

A USB flash drive fails.

A USB flash drive is to be replaced with a new model.
Prerequisites
Conditions

You have removed the chassis cover from the N2000H V3. For details, see 5.6
Removing the Chassis Cover.
Data

You have determined the position on the N2000H V3 for removing a USB flash drive.
