1.6 Mainboard Layout
This topic describes the ports on the N2000H V3 mainboard.
Figure 1-6 and Figure 1-7 show the ports on the N2000H V3 mainboard.

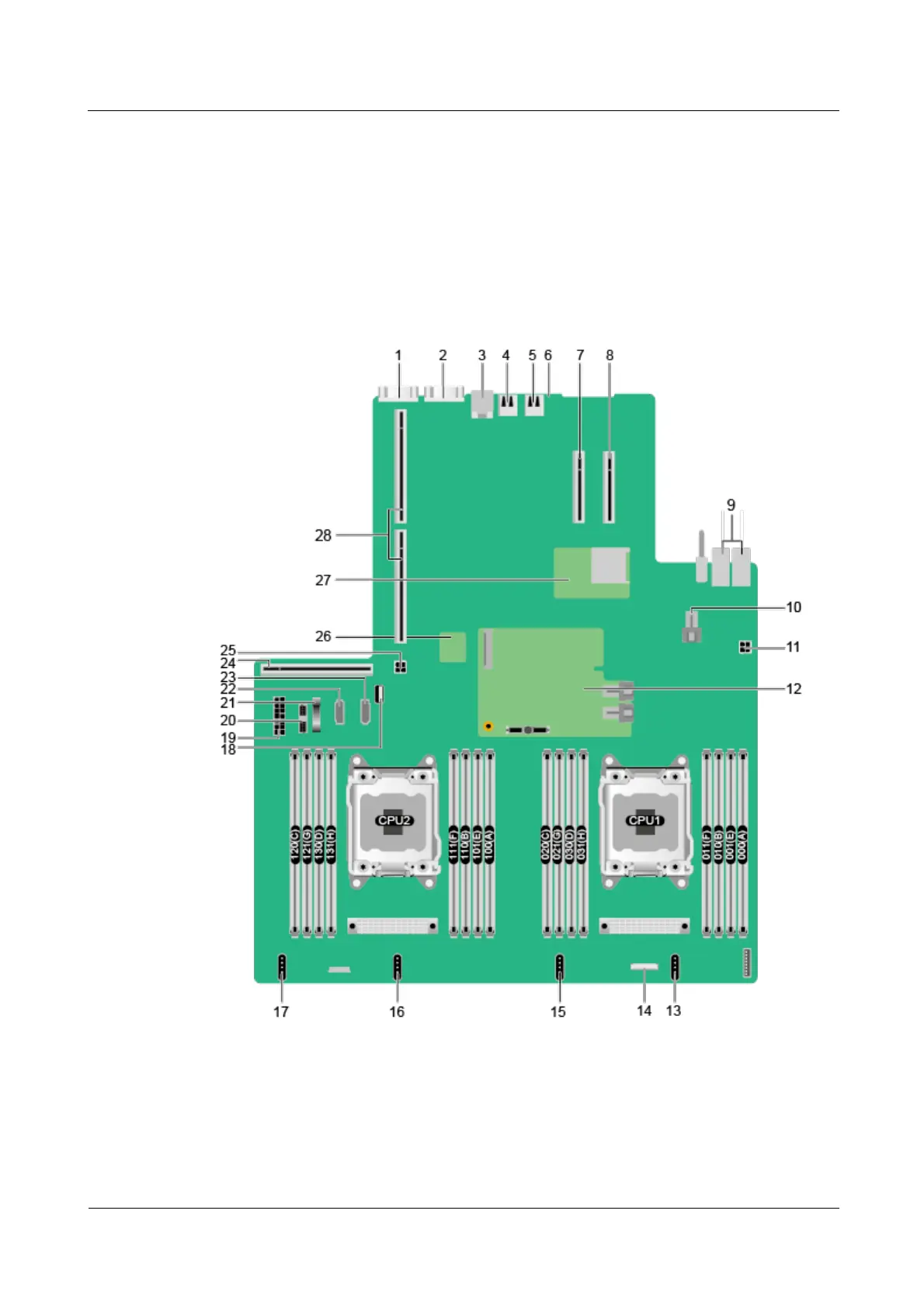

Figure 1-6 Mainboard layout (dual-CPU configuration)
1
Serial port (J55 COM CONN )
2
VGA port (J54)
3
Management network port (J33)
4
USB 3.0 port 2 (J39)
5
USB 3.0 port 1 (J40)
6
UID button/indicator
7
PCIe x8 slot (J49 X8 PCIE SLOT HH/HL)
8
PCIe x8 slot (J50 X8 PCIE SLOT
