Flat-head screwdriver
Procedure
Step 1 Loosen the latch that secures the handle of the chassis cover using a flat-head screwdriver.
See step (1) in Figure 5-15.
Step 2 Open the handle to push the chassis cover backwards. See step (2) in Figure 5-15.

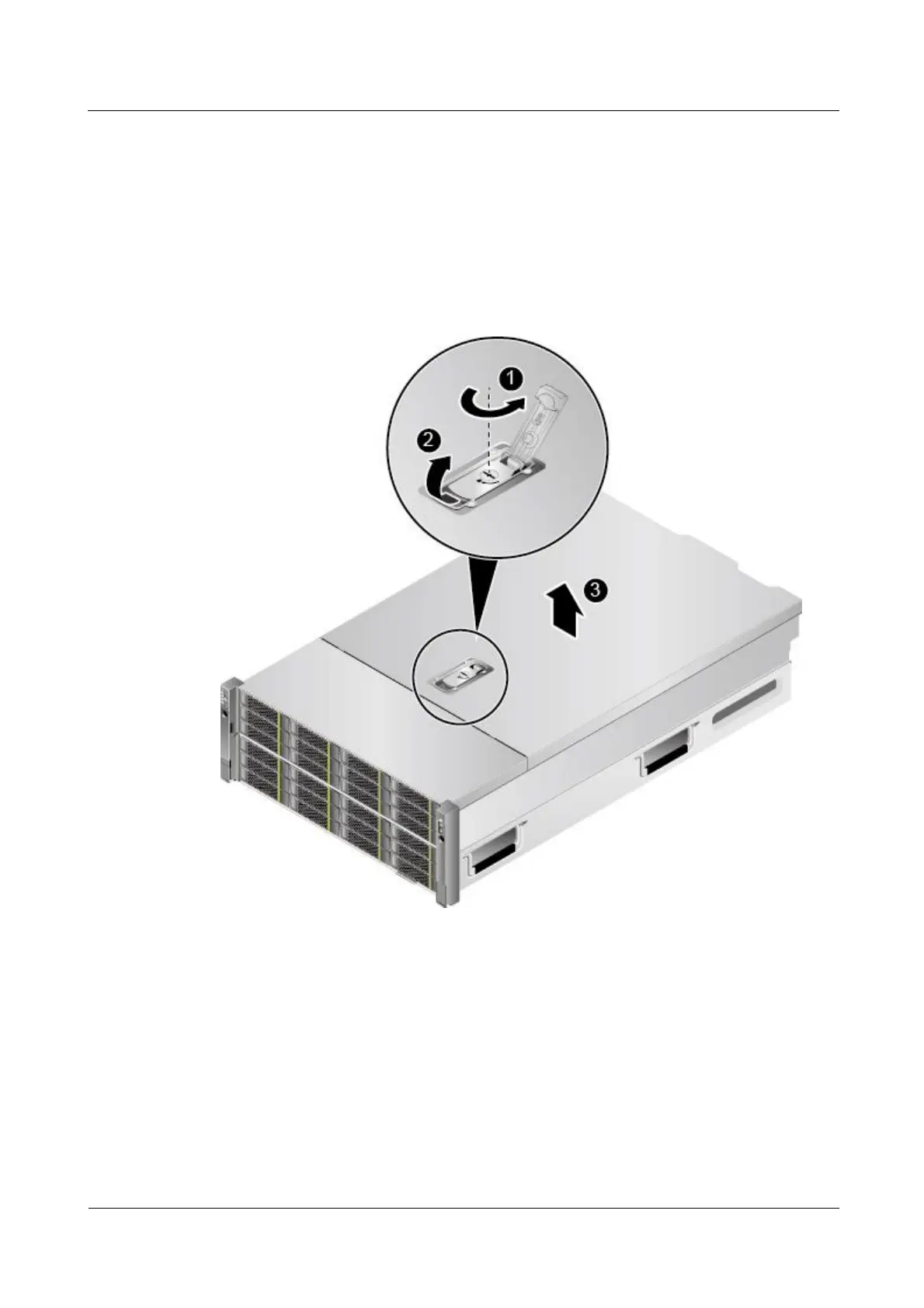

Figure 7-15 Removing a chassis cover
Step 3 Lift the chassis cover. See step (3) in Figure 5-15.
----End
7.7 Installing a Chassis Cover
This topic describes how to install the chassis cover for the N2000H V3 after replacing one or
more N2000H V3 parts.
