Huawei N2000H V3 User Manual

N2000H V3 Appliance
User Guide
7 Replacing Parts
Issue 04 (2018-11-06)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
163

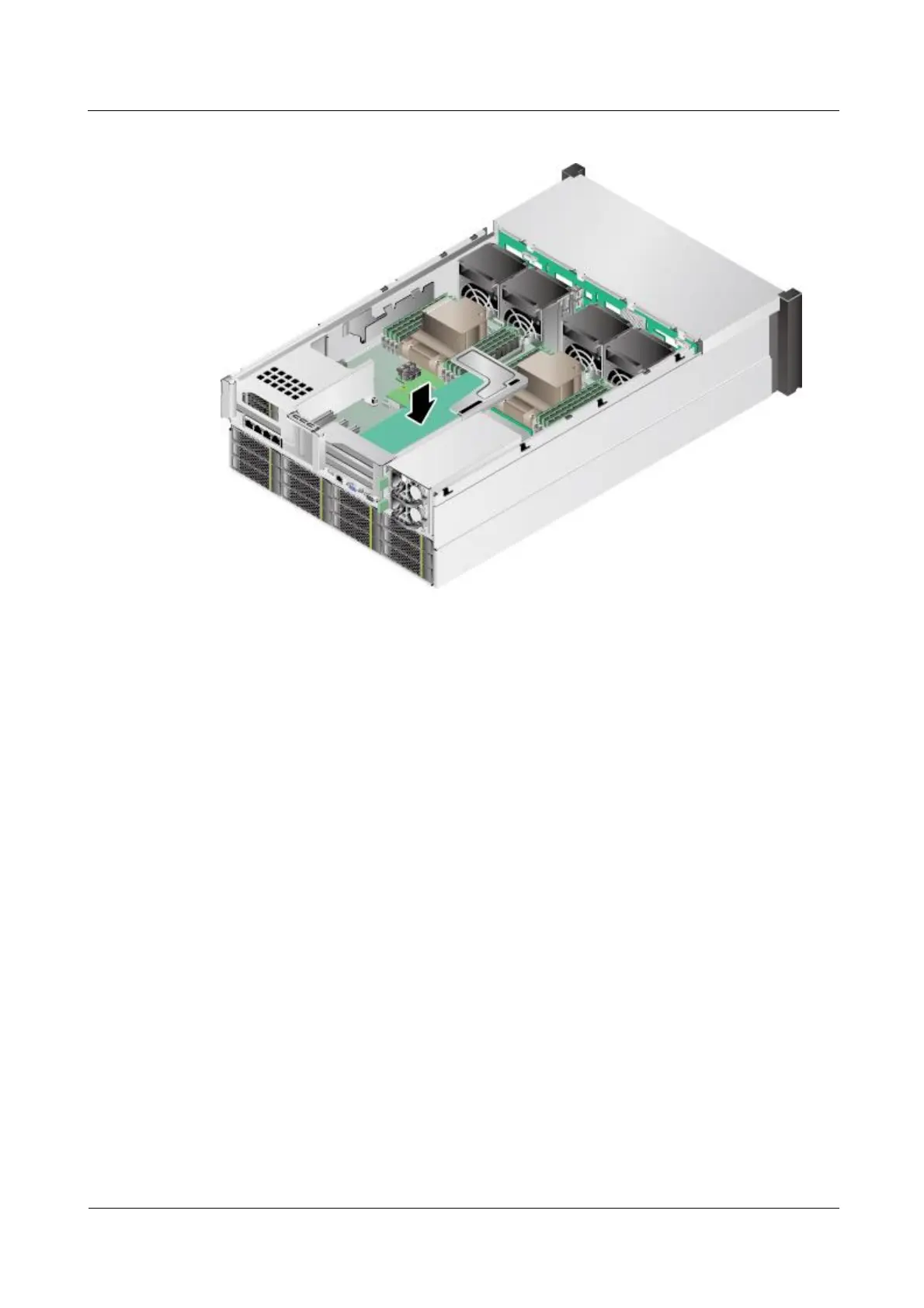

Figure 7-26 Installing a riser card tray
----End
7.14 Removing a PCIe Card
This topic describes how to remove a Peripheral Component Interconnect Express (PCIe) card
on the riser card and a PCIe card on the mainboard.
7.14.1 Removing a PCIe Card from the Riser Card
This topic describes how to remove a Peripheral Component Interconnect Express (PCIe) card
from the riser card.
Scenarios
Remove a PCIe card in any of the following scenarios:

A PCIe card fails.

The riser card connected to a PCIe card is to be removed.

A PCIe card is to be replaced with a new model.
Prerequisites
Conditions

You have powered off the N2000H V3. For details, see 3.2 Powering Off.
