N2000H V3 Appliance
User Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

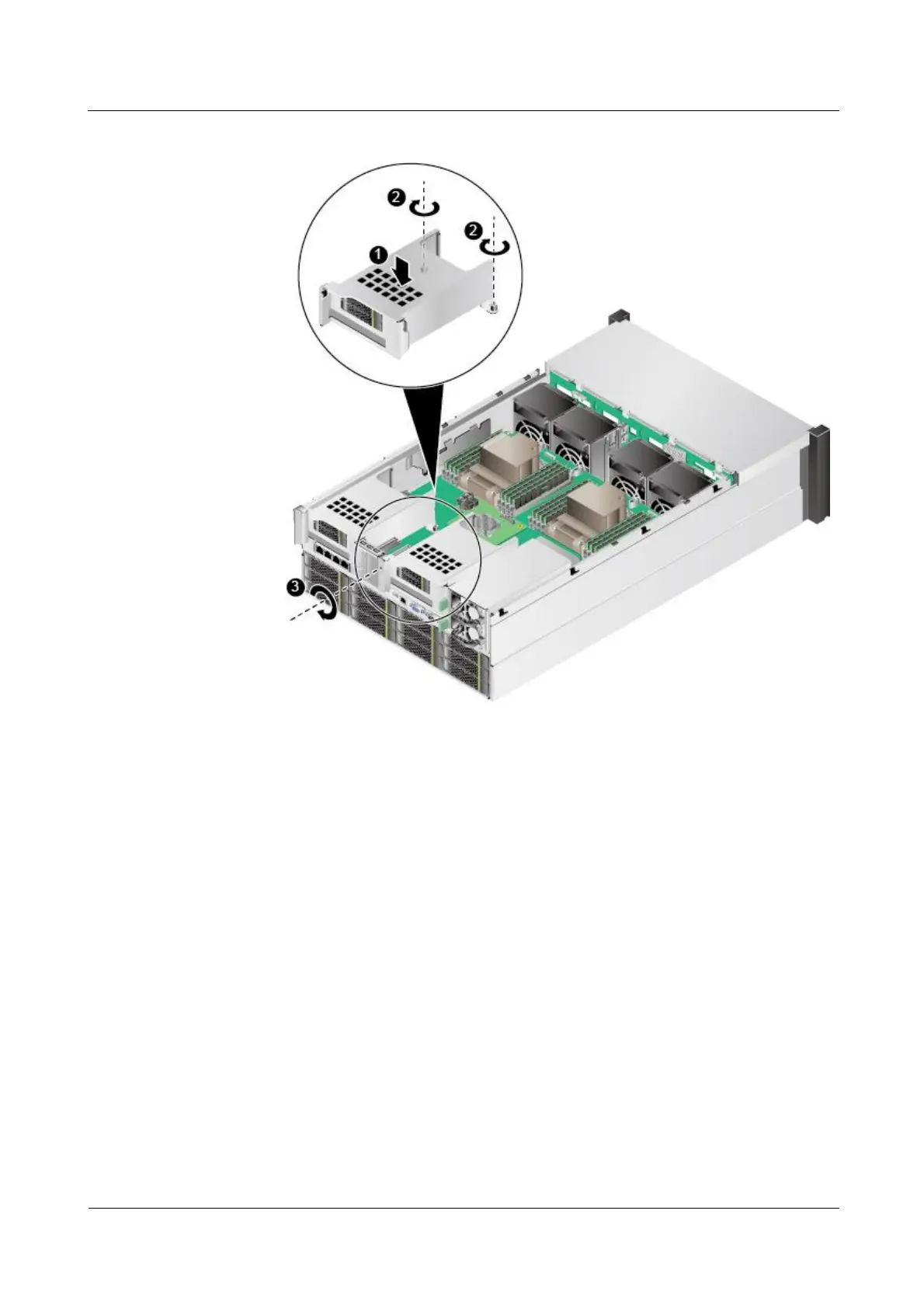

Figure 7-85 Installing a rear hard disk module
e. Connect cables to the rear hard disk backplane. For details, see 1.7 Internal Cabling.
----End
7.42 Removing the PSU Backplane
This topic describes how to remove the power supply unit (PSU) backplane.
Scenarios
Remove the PSU backplane before replacing it with a new one.
Prerequisites
Conditions
You have powered off the N2000H V3. For details, see 3.2 Powering Off.
You have removed the chassis cover from the N2000H V3. For details, see 5.6
Removing the Chassis Cover.
