N2000H V3 Appliance
User Guide
7 Replacing Parts
Issue 04 (2018-11-06)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
229

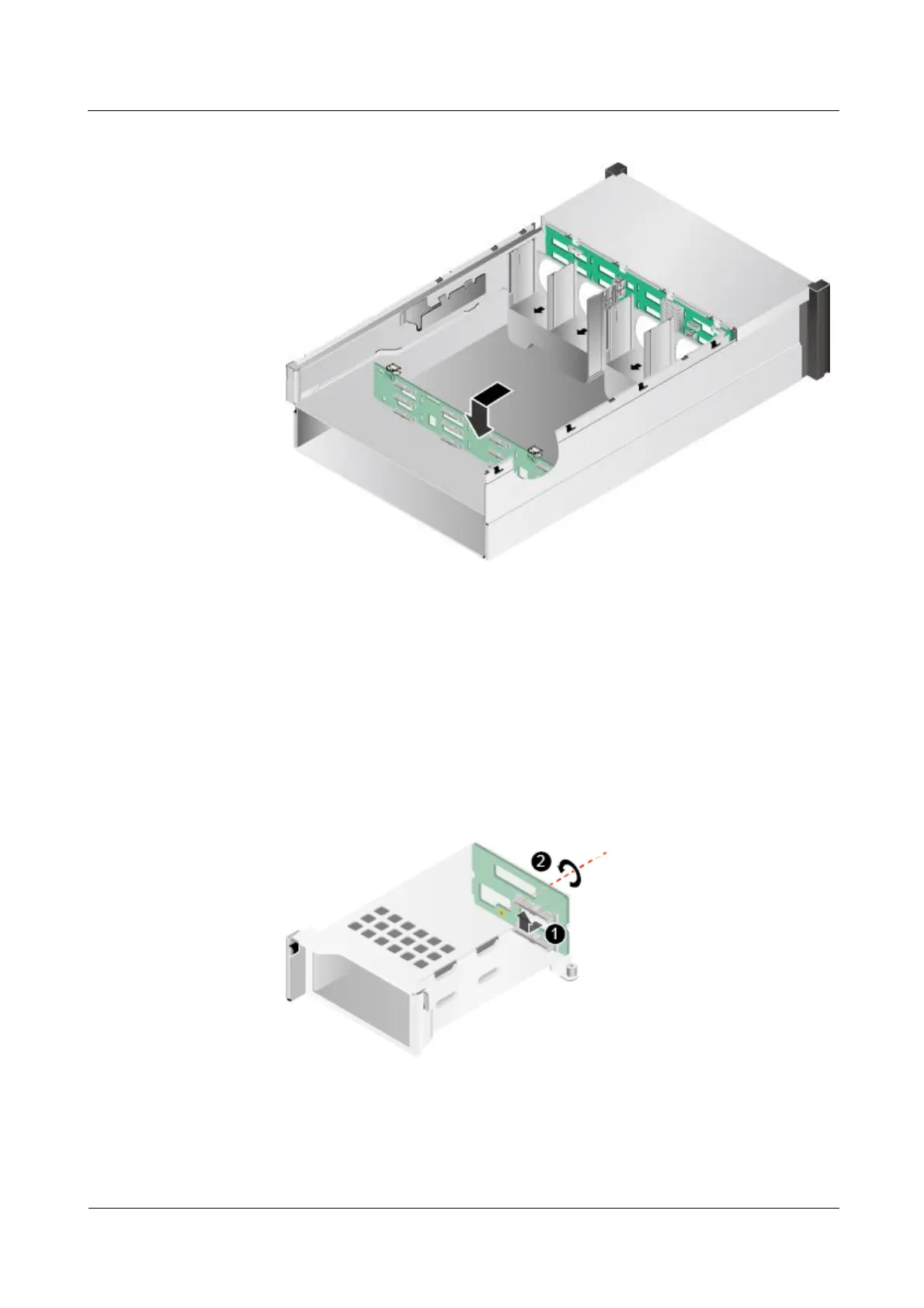

Figure 7-83 Installing a rear hard disk backplane for 12 disks
c. Connect cables to the rear hard disk backplane. For details, see 1.7 Internal Cabling.
d. Install the mainboard frame and connect all cables to the mainboard. For details, see
1.7 Internal Cabling.
e. Install all hard disks in the rear hard disk backplane.

Install a rear hard disk backplane for two disks.
a. Take the spare rear hard disk backplane out of the ESD bag.
b. Install the rear hard disk backplane in the rear hard disk module in the arrow
direction, and screw the hard disk backplane. See Figure 5-84.
Figure 7-84 Installing a rear hard disk backplane for two disks
c. Install all hard disks in the rear hard disk backplane.
d. Install the rear hard disk module in the N2000H V3 chassis, and screw the module.
See Figure 5-85.
