You have powered off the N2000H V3. For details, see 3.2 Powering Off.
You have removed the chassis cover from the N2000H V3. For details, see 5.6
Removing the Chassis Cover.
Data
You have determined the position on the N2000H V3 for removing the riser card.
You have obtained the rack number and chassis number of the N2000H V3, and labeled
its panel to prevent misoperations.
Tools
ESD gloves
Packaging materials, for example, an ESD bag
Procedure
Step 1 Lift the riser card tray. See Figure 5-23.

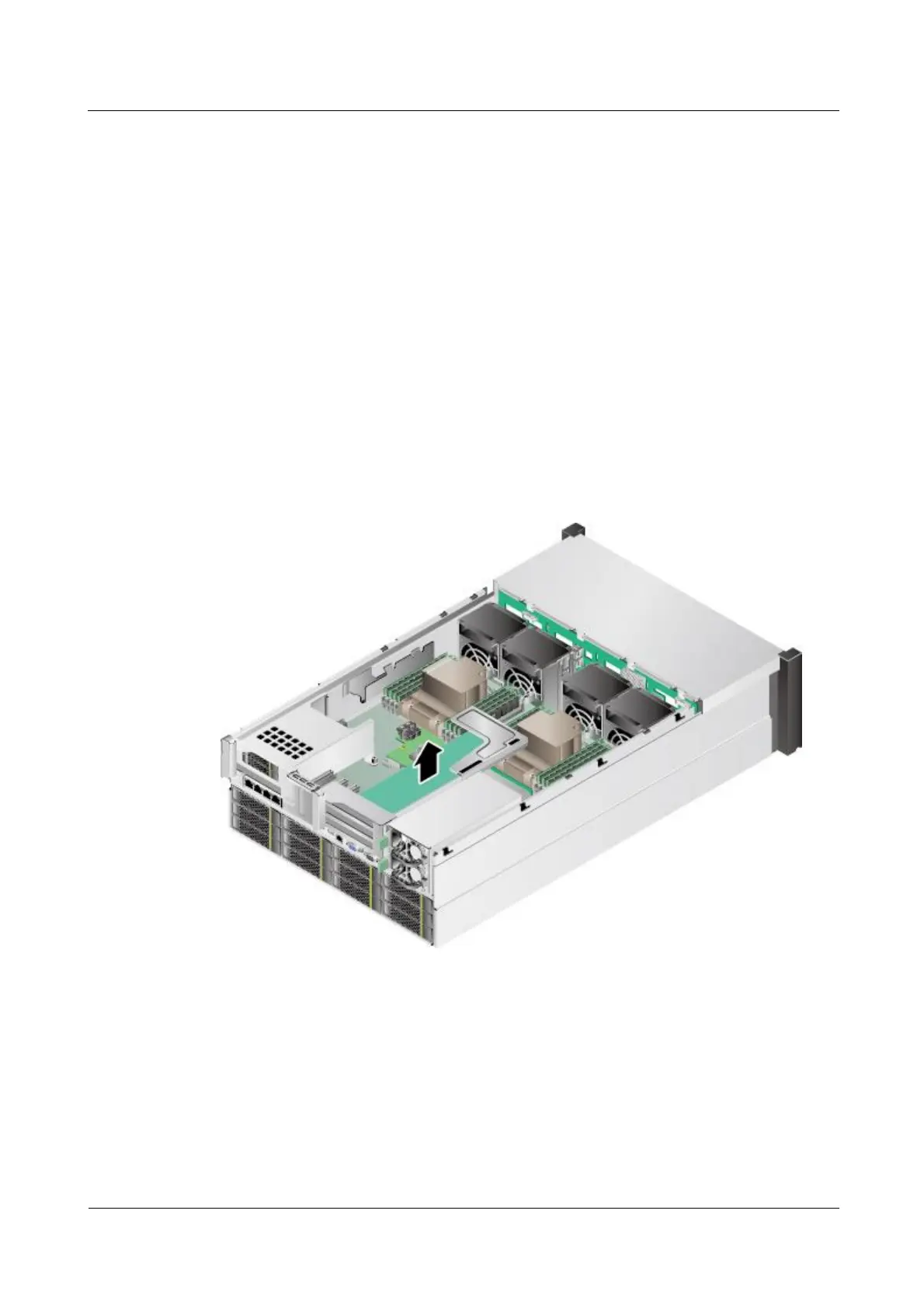

Figure 7-23 Removing a riser card tray
Step 2 Remove the PCIe cards from the riser card tray. For details, see 5.14.1 Removing a PCIe Card
from the Riser Card.
Step 3 Unscrew the riser card. See step (1) in Figure 5-24.
Step 4 Pull the riser in the arrow direction to remove it. See step (2) in Figure 5-24.
