N2000H V3 Appliance
User Guide
1 Product Overview
Issue 04 (2018-11-06)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16

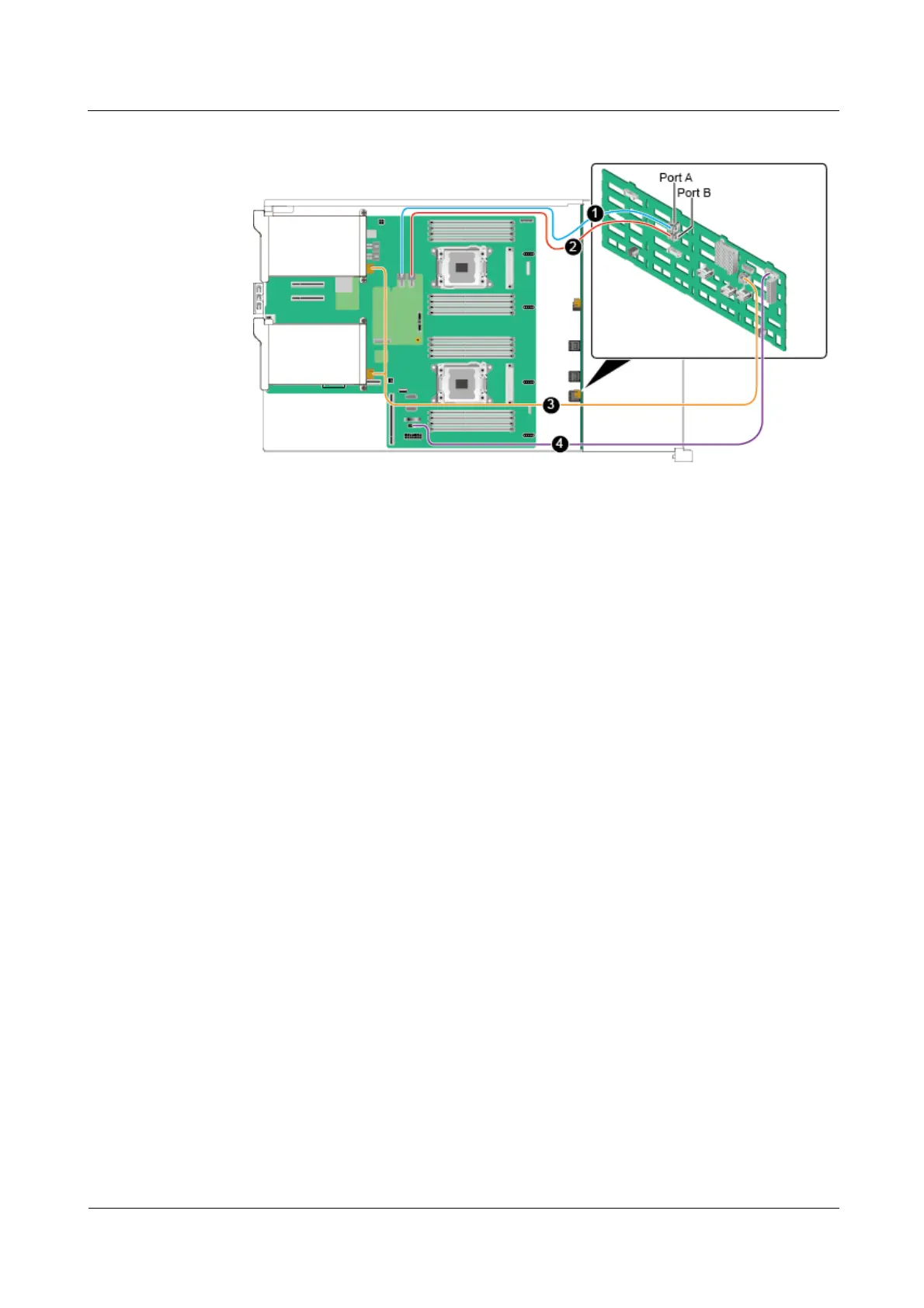

Figure 1-7 Signal cables to the front hard disk backplane
1
SAS HD cable (Port A-Port A) for connecting the front hard disk backplane to the
RAID controller card on the mainboard
2
SAS HD cable (Port B-Port B) for connecting the front hard disk backplane to the
RAID controller card on the mainboard
3
SAS HD cable (one-into-two cable) for connecting the front hard disk backplane
(J31 rear port) to the rear hard disk backplane (J3) for two disks
4
Signal cable for connecting the front hard disk backplane (J35) to the mainboard
(J42)

Signal cables for connecting the rear hard disk backplane for 12 disks to the front hard
disk backplane when the N2000H V3 is equipped with a single RAID controller card
