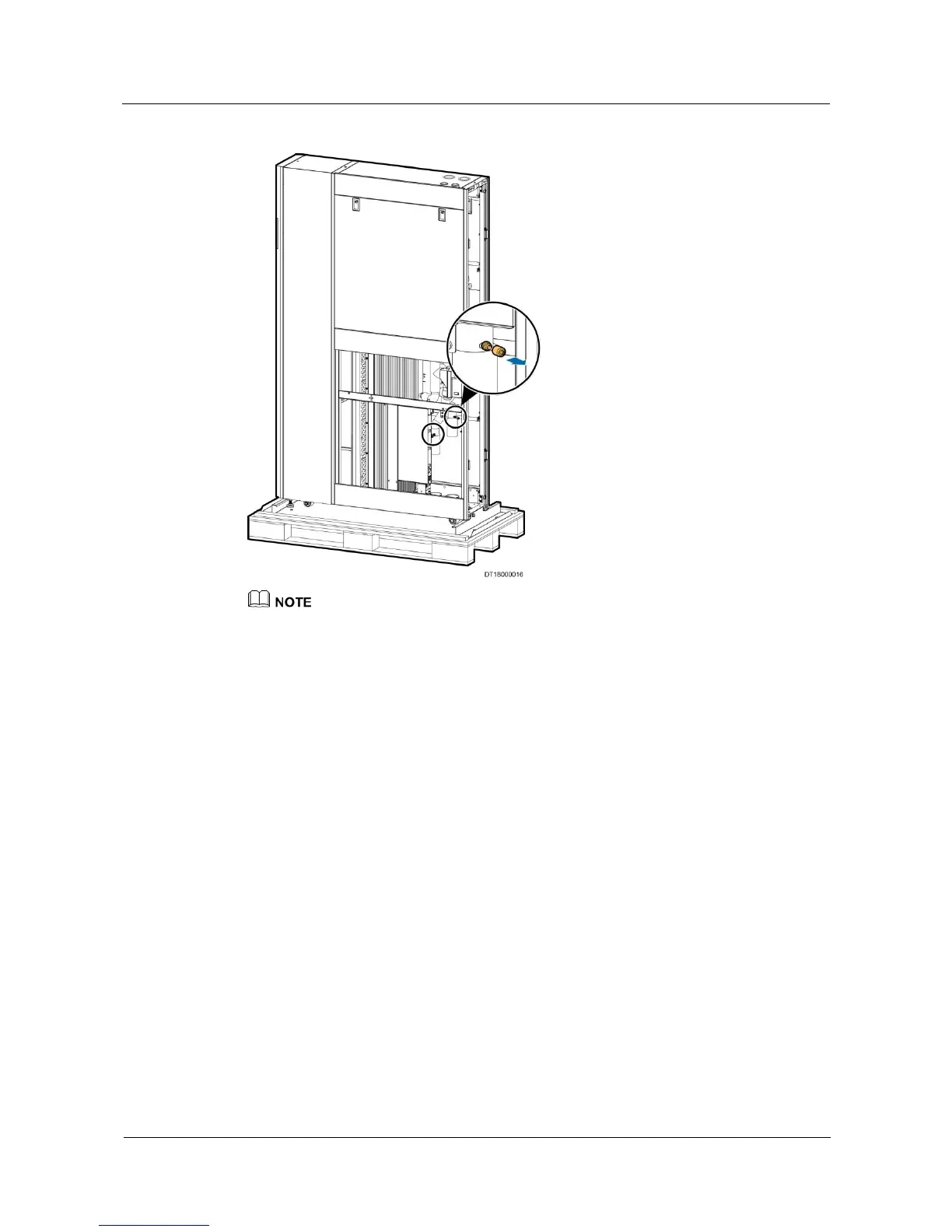

Figure 3-10 Checking the pressure

If air is exhausted from the needle valve indicating system is normal, and then fasten the bonnets.

If no air is exhausted from the needle valve, contact Huawei technical support.
----End
Follow-up Procedure
Check whether insulation cotton is securely pasted to internal pipes. The chilled water valve is
wrapped with insulation cotton without metal part exposed.
3.9 Securing the NetCol5000-C to the Ground
Procedure
Step 1 Figure 3-11 shows how to remove the screws from the securing plate.
