Installing the Water Pipe Adaptor
When fastening the adaptor, fix the water pipe using an adjustable wrench to prevent pipe
deformation.
Step 1 Apply seal adhesive to the joint of external screw threads and install the water pipe adaptor
for the inlet pipe and outlet pipe in sequence, as shown in Figure 3-20.

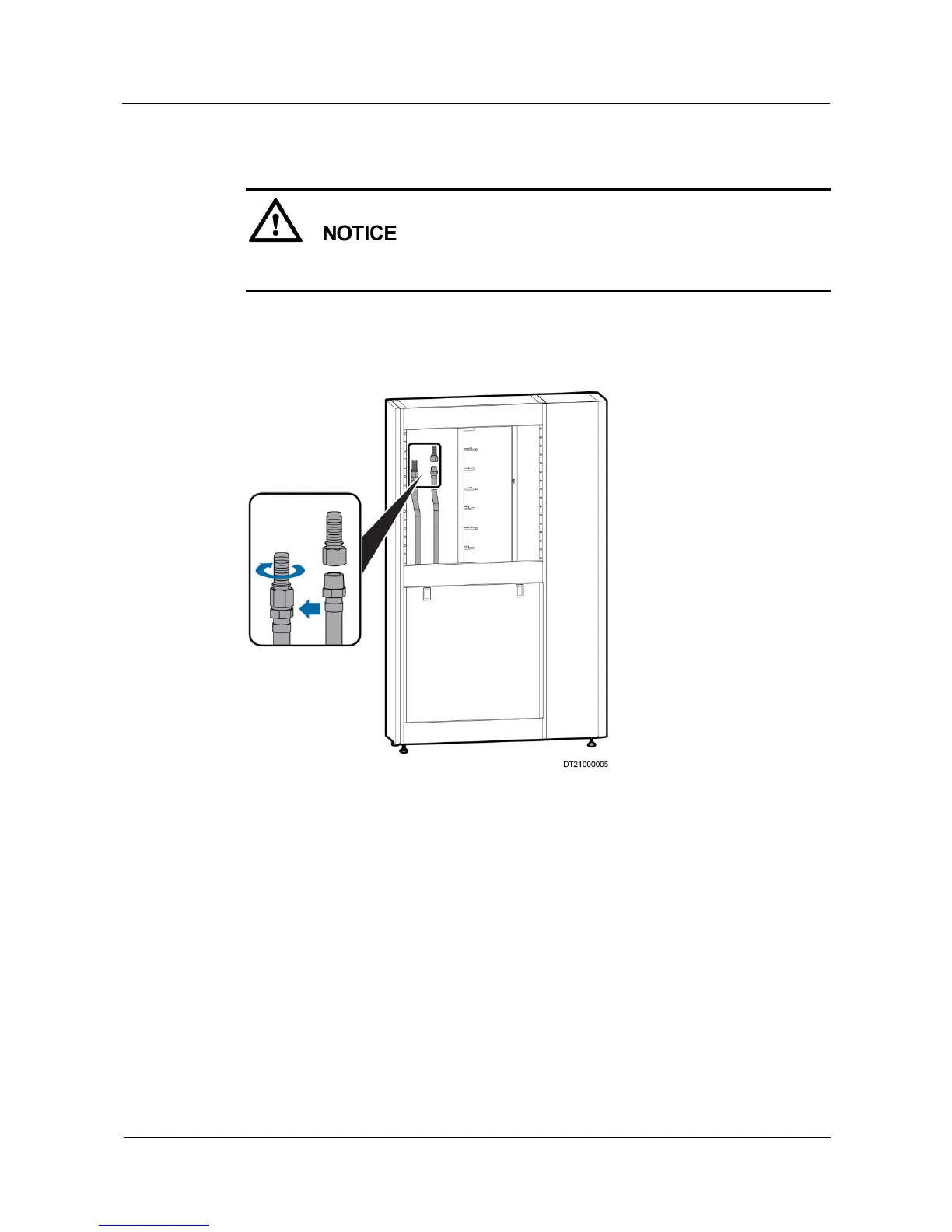

Figure 3-20 Installing the water pipe adaptor
----End
3.12.4 Connecting the Water Inlet or Outlet Pipes
Context
Connect the water inlet or outlet pipes from inside to the outside and from the top to the
bottom. Routed it from the bottom is similar to the top, give the top routed for an example.
Figure 3-21 shows how to connect water inlet or outlet pipes.
Procedure
Step 1 Wrap the water inlet or outlet pipes with insulation cotton.
Step 2 Cut a cross shape hole on the glue circle and route the water pipe through the glue circle.
