NetCol5000-C Chilled Water-Cooled In-Row Precision
Air Conditioner
User Manual
3 Installation Guide
Issue 02 (2013-12-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
20

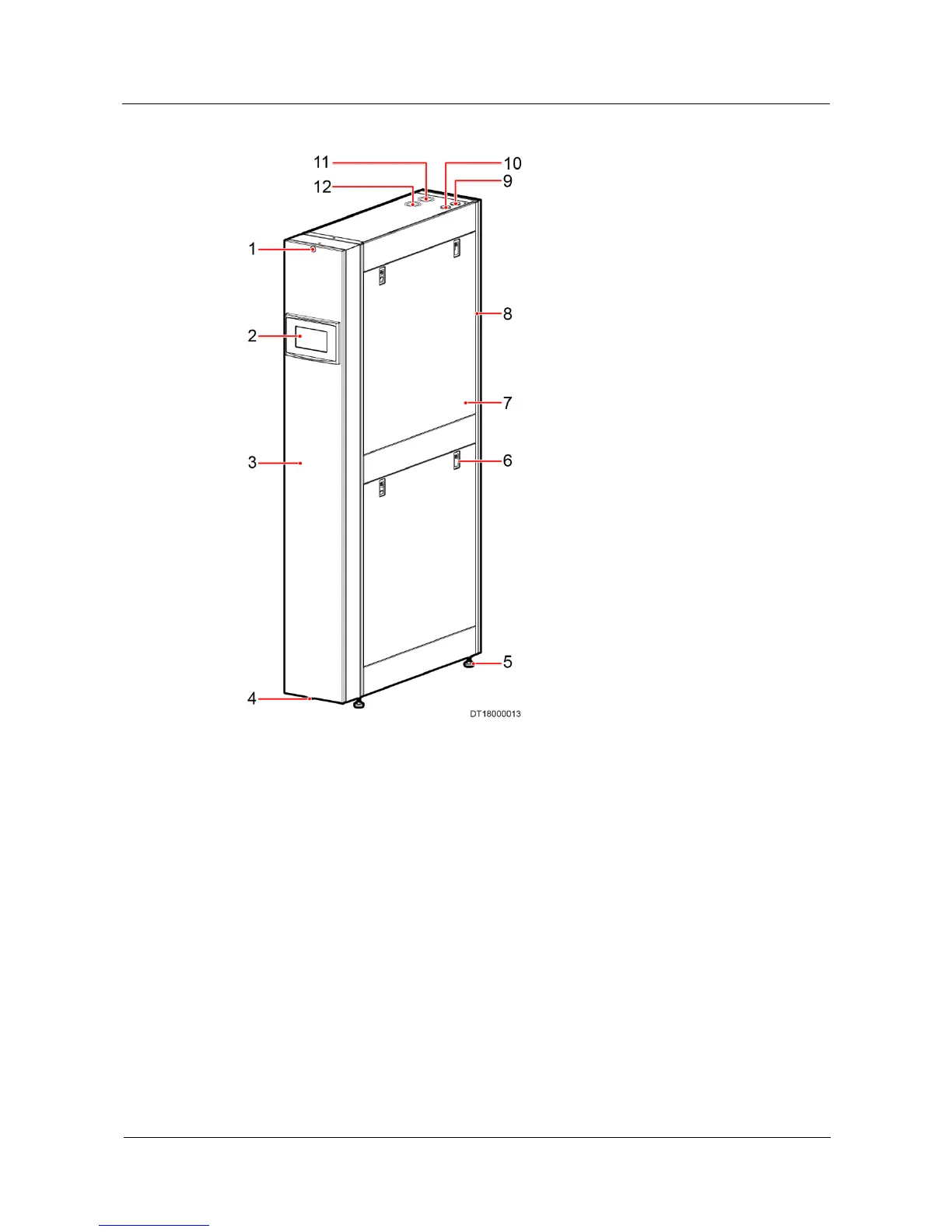

Figure 3-1 Structural specifications of the NetCol5000-C
1. Door lock
2. Control panel
3. Front door
4. Caster
5. Leveling foot
6. Latch and lock on the side panel
7. Side panel
8. Rear door
9. Power cable hole
10. Signal cable
hole
11. Top water outlet for a
water pipe
12. Top water inlet for a water pipe
3.2 Transportation and Entry
3.2.1 Transportation
No excessive tilt or jolt is allowed during the transportation of the NetCol5000-C. Therefore,
choose the rail, sea, or good road transport. When moving the NetCol5000-C, keep the
gradient within 75-105degree, as shown in Figure 3-2.
