3.13.4 Connecting the Voltage Jumper
Before connecting the voltage jumper, verify that the voltage jumper matches the mains
voltage.
Ensure that the voltage labeled on the voltage jumper is the same as of the local power supply.
Then connect the two voltage jumpers. Figure 3-26 shows the voltage jumpers. 4 in Figure
3-23 shows the interconnection position.

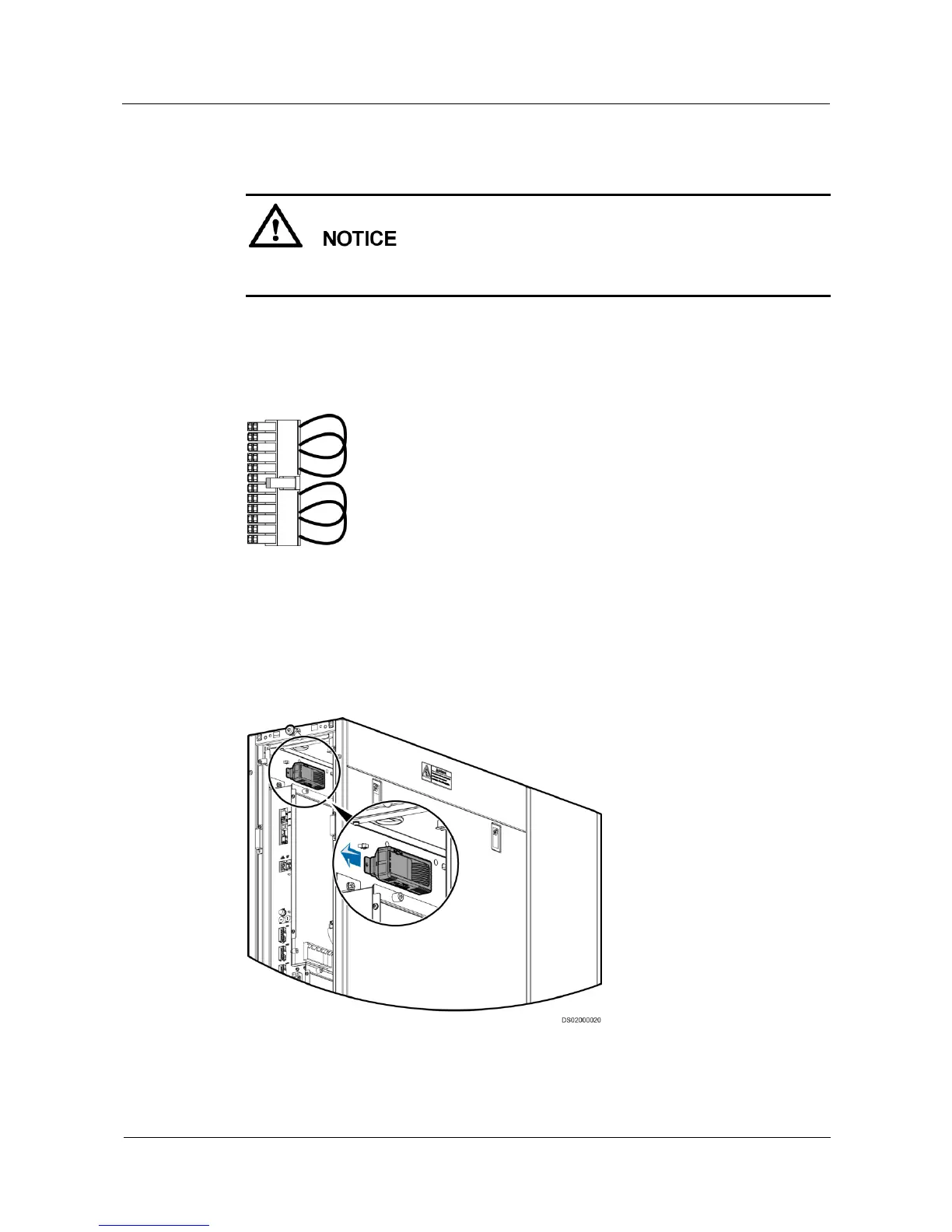

Figure 3-26 Voltage jumper
3.13.5 Installing the Humidity and Temperature Sensor
You could remove the humidity and temperature sensor within the cabinet if you need to
measure the temperature and humidity outside the cabinet, as shown in Figure 3-27.
Figure 3-27 Removing the humidity and temperature sensor
