3.12.2 Connecting the Condensate Drainpipes
Securing condensate drainpipes
Prerequisites
Do not over bend the drainpipe when securing the drainpipe. Use the heat insulation cotton
to wrap the pipes after the connection.
Check that hoses at two ends of the condensate pump and hose to the three-way connector
T-junction valve are securely installed.
Route the condensate drainpipes from the top
1. Loosen the drainpipe tie, and route the drainpipe from the right posts of the rear door to
the top, as shown in Figure 3-16.
2. Pull the drainpipe out from the top main water pipe outlet, and secure the drainpipe on
the post using the fasteners and cable ties.

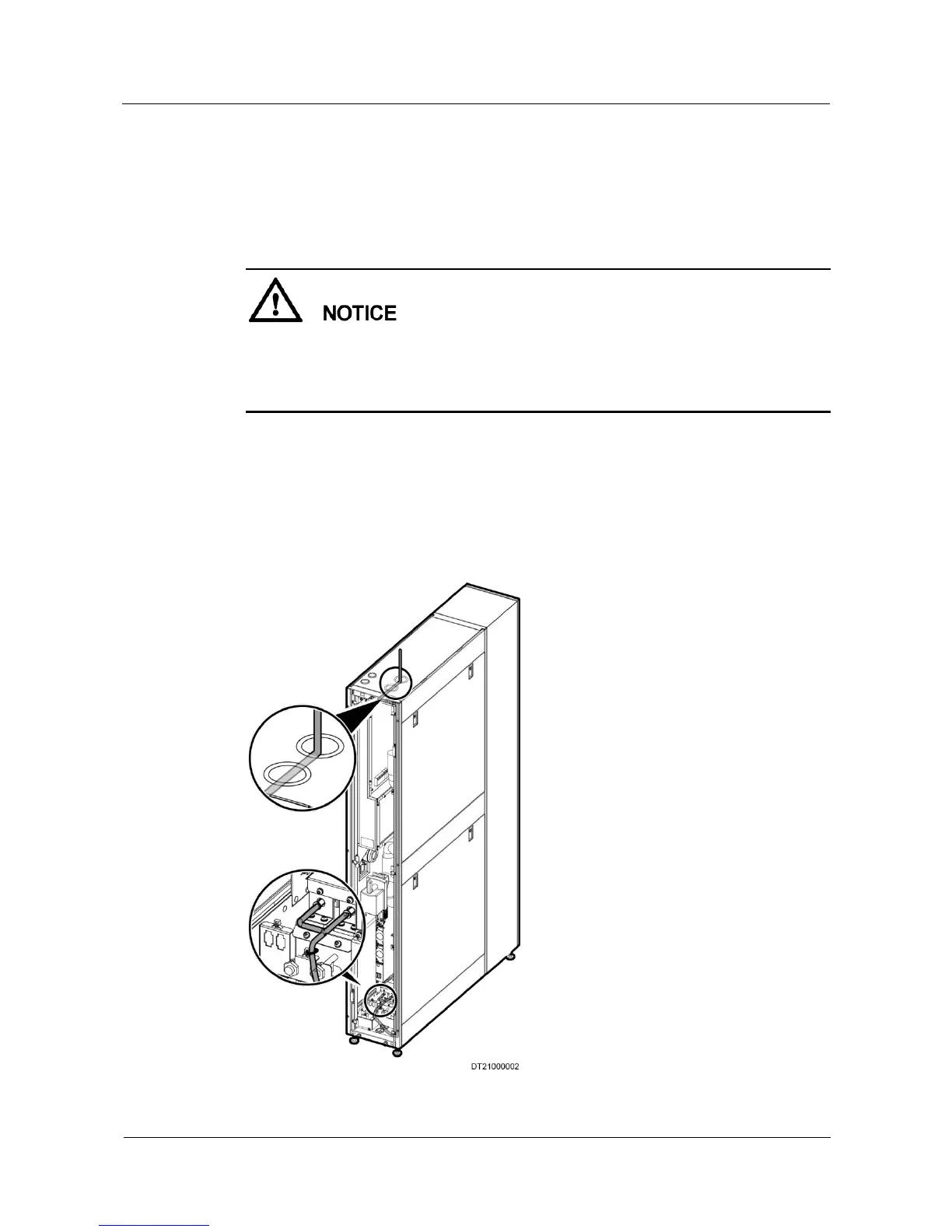

Figure 3-16 Securing condensate drainpipes
